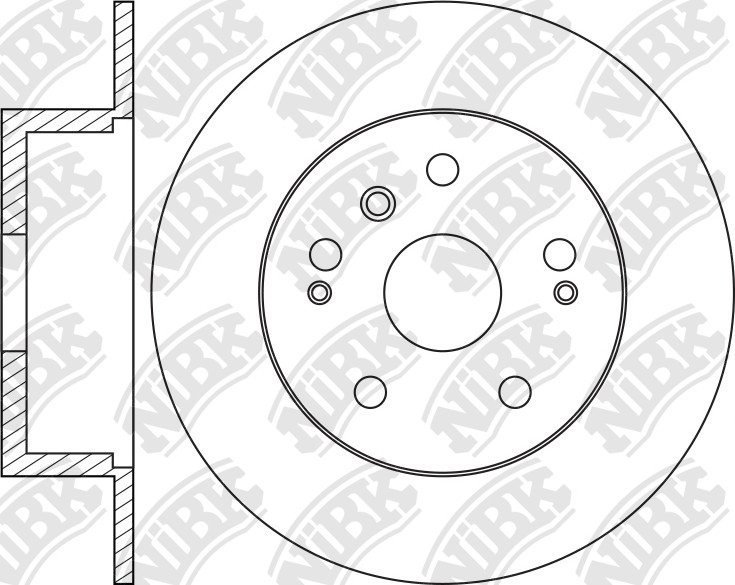

ROTOR DISC » RN1444

Specification

Type
Solid
Front/Rear
Rear
Outter Ø
309
Num. of holes
5
Disc Thickness (Max)
10
Height
69.8
Centering Diameter
62
Pitch Circle Ø
114.3
Drum Ø:
190
Disc Thickness (Min)
8.5
Structure Material
G3000

Cross Reference

TOYOTA
42431-0E040
TOYOTA
42431-48060
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.09~12.13 2700 1AR-FE ASU40 PN1845 RN1444 PN1848
05.09~01.13 2700 1AR-FE ASU40L RN1443V PN1845 RN1444 PN1848
01.07~08.10 3300 3MZ-FE GVU48 RN1443V PN1845 RN1444 PN1848 FN0567
08.07~08.10 3300 3MZ-FE MHU48L RN1443V PN1845 RN1444 PN1848 FN0567
01.07~12.13 3500 2GR-FE GSU40L RN1443V PN1845 RN1444 PN1848 FN0567
07.05~12.15 3500 2GR-FE GSU45L RN1443V PN1845 RN1444 PN1848 FN0567
05.09~01.13 3500 2GR-FE MHU48L RN1443V PN1845 RN1444 PN1848 FN0567
05.09~12.13 3500 2GR-FE GSU40R RN1443V PN1845 RN1444 PN1848

Exemption from liability: the catalog data is advisory and can be used for reference only
