ROTOR DISC » RN1483V

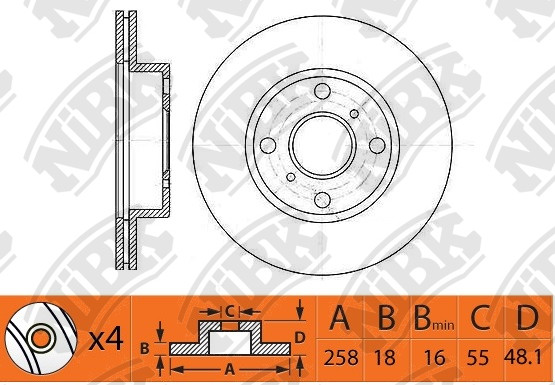

Specification

Type
Vented
Disc Thickness (Max)
18
Num. of holes
4
Height
48.1
Centering Diameter
55
Pitch Circle Ø
100
Outter Ø
258
Drum Ø:
131
Disc Thickness (Min)
16.5
Structure Material
G3000

Cross Reference

TOYOTA
43512-12370
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.91~11.01 1600 4A-FE AE101 RN1483VRN1250V PN1077 FN2311
01.95~08.98 1600 4A-FE AE111 RN1250VRN1483V PN1077PN1322 DN1244 FN2311PN1321
06.91~08.98 1600 4A-FE AE101 RN1483V PN1077 DN1244 FN2311
05.96~07.02 1600 4A-FE AE111G RN1483V PN1077 DN1244 FN2311
04.91~08.98 1600 4A-FE AE101 RN1483V PN1077 DN1244 FN2311
05.95~08.00 1600 4A-FE AE111 RN1483V PN1077PN1362 DN1244 FN2311

Exemption from liability: the catalog data is advisory and can be used for reference only
