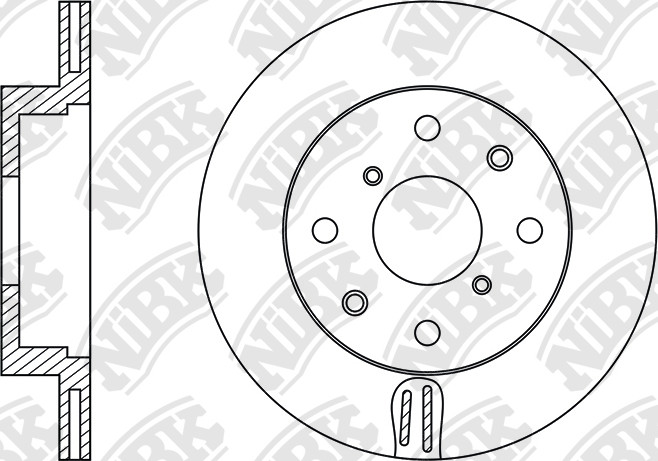

ROTOR DISC » RN1523V

Specification

Type
Vented
Disc Thickness (Max)
17
Num. of holes
4
Height
49
Centering Diameter
60
Front/Rear
Front
Pitch Circle Ø
100
Outter Ø
253
Drum Ø:
153
Disc Thickness (Min)
15
Structure Material
G3000

Cross Reference

OEM
4706749
OEM
4707288
OEM
93176389
OEM
93179462
SUZUKI
5531184E01
SUZUKI
5531186G02
SUZUKI
5531186G02000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.03~12.07 1300 M13A G3X RN1523V PN9807 FN0032
01.03~12.07 1500 M15A G3X RN1523V PN9807 FN0032
01.03~01.08 1300 M13A HX51 RN1523V PN9807 DN1412DN1373 FN9977
06.03~01.08 1300 Z13DT HX91S 5DR HB LHD RN1523V PN9807 DN1373 FN9977
01.03~01.08 1500 M15A MHX81 RN1523V PN9807 DN1373DN1412 FN9977
08.05~12.10 1300 M13A MA34S RN1523VRN1131 PN9807PN9406 FN9959

Exemption from liability: the catalog data is advisory and can be used for reference only
