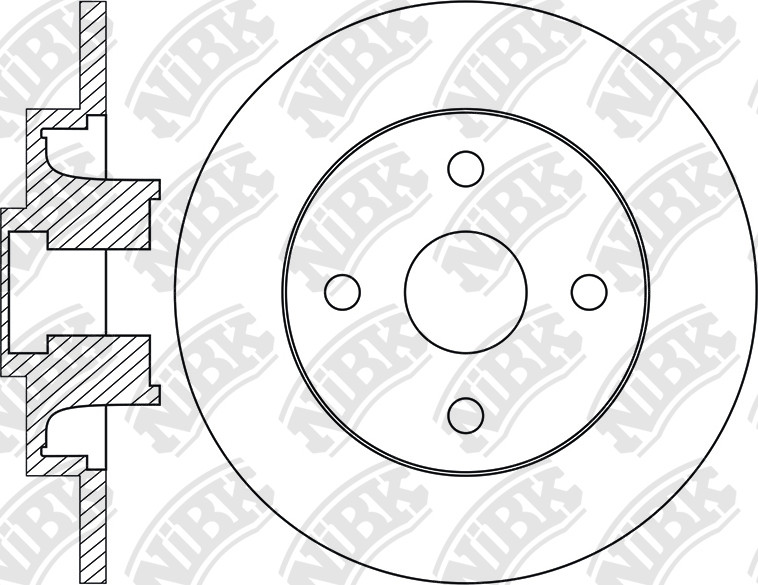

ROTOR DISC » RN1857H
Specification
Type
Solid
Outter Ø
268
Num. of holes
4
Disc Thickness (Max)
12
Height
73.2
Centering Diameter
56/62
Pitch Circle Ø
108
Front/Rear
Rear
Disc Thickness (Min)
10
Structure Material
G3000
Cross Reference
PEUGEOT
4249.45
PEUGEOT
4249.46
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.16~01.18 | 1200 | EB2DT | LCV/microBUS | RN1151V | PN0471 | RN1857H | PN0472 | |
| 03.08~ | 1600 | 1.6 HDi 75 | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.08~01.18 | 1600 | DV6ATED4 | LCV/microBUS | RN1151V | PN0471 | RN1857H | PN0472 | |
| 03.10~12.16 | 1600 | DV6AUTED4 | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.08~ | 1600 | DV6AUTED4 | B9(Long) | RN1151V | PN0471 | RN1857H | PN0472 | |
| 04.08~ | 1600 | DV6BTED4 | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 03.10~ | 1600 | DV6DTED | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.08~ | 1600 | DV6DTED | B9(Long) | RN1151V | PN0471 | RN1857H | PN0472 | |
| 10.15~07.19 | 1600 | DV6FD | B9(Long) | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.15~ | 1600 | DV6FE / FETED | Minivan | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.08~01.18 | 1600 | EP6C | LCV/microBUS | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.08~01.18 | 1600 | TU5JP | LCV/microBUS | RN1151V | PN0471 | RN1857H | PN0472 |
| 01.16~ | 1200 | EB2DTS | B7 | RN1151V | PN0471 | RN1857H | PN0473 | |
| 11.09~12.15 | 1600 | 1.6 HDI 92 | B7 | RN1151V | PN0471 | RN1857H | PN0473 | |
| 10.10~ | 1600 | 1.6 THP 16v 156 | B7 | RN1748V | PN0398W | RN1857H | PN0473 | |
| 11.09~ | 1600 | DV6C | B7 | RN1151V | PN0471 | RN1857H | PN0473 | |
| 02.15~ | 1600 | DV6FC 120 | B7 | RN1151V | PN0471 | RN1857H | PN0473 |
| 10.08~08.13 | 1600 | 1.6 THP 16v 150 | UA | RN1854V | PN0398W | RN1857H | PN0481 | |
| 07.08~08.13 | 1600 | 1.6 THP 16v 150 | UD | RN1854V | PN0398W | RN1857H | PN0481 | |
| 09.10~08.13 | 1600 | DV6C | UA | RN1151V | PN0471 | RN1857H | PN0481 | |
| 01.09~ | 1600 | EP6CDT | UA | RN1854V | PN0398W | RN1857H | PN0501PN0019W | |
| 07.09~08.13 | 2000 | DW10CTED4 | UD | RN1854V | PN0398W | RN1857H | PN0481 | |
| 10.06~08.10 | 2000 | EW10A | UA | RN1854V | PN0398W | RN1857H | PN0481 | |
| 10.06~08.13 | 2000 | EW10A | UD | RN1854V | PN0398W | RN1857H | PN0481 |
| 05.12~07.15 | 1600 | DV6C | NX | RN1151V | PN0471 | RN1857HRN1746H | PN0473PN0019W | |
| 05.14~12.18 | 1600 | DV6FC | NX | RN1151V | PN0471 | RN1857H | PN0473 | |
| 05.11~07.15 | 1600 | EP6CDT | NX | RN1748V | PN0398W | RN1857H | PN0473 | |
| 05.11~07.15 | 1600 | EP6CDT M | NX | RN1748V | PN0398W | RN1857H | PN0473 |
| 11.11~12.18 | 1600 | DV6C | 5-Hatchback | RN1151V | PN0471 | RN1857H | PN0473 | |
| 06.12~07.15 | 1600 | EP6CDT | 5-Hatchback | RN1748V | PN0398W | RN1857H | PN0473 | |
| 01.12~12.15 | 1600 | EP6CDT | KF | RN1748V | PN0398W | RN1857H | PN0473 | |
| 11.11~12.18 | 1600 | EP6FDT | RN1748V | PN0348WPN0471 | RN1857H | PN0473 |
| 01.15~05.17 | 1200 | EB2DTS | 5-Crossover | RN1151V | PN0450 | RN1857H | PN0473 | |
| 06.09~05.17 | 1600 | DV6C | 5-Crossover | RN1151V | PN0450 | RN1857H | PN0473 | |
| 05.14~05.17 | 1600 | DV6FC | 5-Crossover | RN1151V | PN0450 | RN1857H | PN0473 | |
| 06.09~05.17 | 1600 | EP6CDT | 5-Crossover | RN1854V | PN0348W | RN1857H | PN0473 | |
| 06.09~05.17 | 2000 | DW10CTED4 | 5-Crossover | RN1854V | PN0348W | RN1857H | PN0473 |
| 09.09~03.17 | 1600 | DV6C | Hatchback | RN1151V | PN0471 | RN1857H | PN0473 | |
| 10.13~03.17 | 1600 | DV6FC | T87E | RN1748V | PN0348W | RN1857H | PN0473 | |
| 09.09~03.17 | 1600 | EP6CDT | C/Van | RN1748V | PN0398W | RN1857H | PN0473 | |
| 09.09~03.17 | 2000 | DW10CTED4 | C/Van | RN1748V | PN0398W | RN1857H | PN0473 |
| 04.12~ | 1600 | DV6AUTED4 | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 06.15~04.22 | 1600 | DV6ETEDM | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 04.08~ | 1600 | DV6FD | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 04.08~ | 1600 | TU5JP4 | B9 | RN1151V | PN0471 | RN1857H | PN0472 | |
| 04.08~ | 1600 | TU5JP4B | B9 | RN1151V | PN0471 | RN1857H | PN0472 |
| 02.16~ | 1200 | EB2DT | LCV/microBUS | RN1151V | PN0471 | RN1857HDN1556 | FN0600PN0472 | |
| 04.08~01.09 | 1600 | 1.6 HDi 75 | Fourgon | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.09~ | 1600 | DV6AUTED4 | Fourgon | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.09~ | 1600 | DV6BTED4 | Fourgon | RN1151V | PN0471 | RN1857H | PN0472 | |
| 01.09~ | 1600 | DV6DTED | Fourgon Long | RN1151V | PN0471 | RN1857H | PN0472 |
