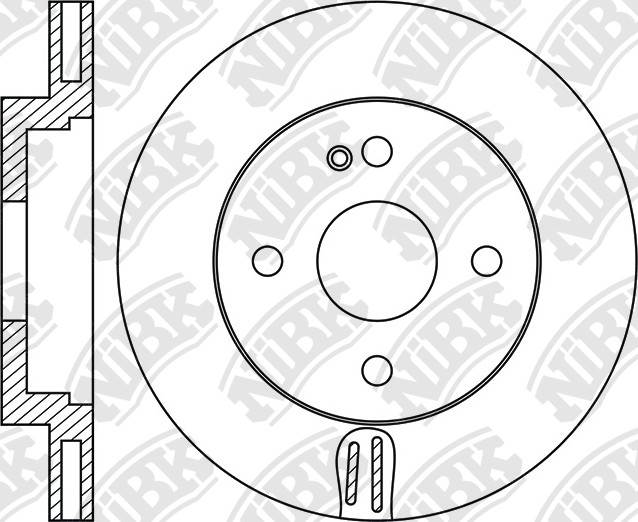

ROTOR DISC » RN1903V

Specification

Type
Vented
Outter Ø
239
Num. of holes
4
Disc Thickness (Max)
20
Height
41
Centering Diameter
55
Pitch Circle Ø
100
Front/Rear
Front
Drum Ø:
135
Disc Thickness (Min)
18
Structure Material
G3000

Cross Reference

MAZDA
D651-33-251
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.07~09.14 1300 ZJ-VE DE3AS RN1903V PN0544 DN1408 FN0630
05.07~09.14 1300 ZJ-VE DE3FS RN1903V PN0544 FN3434
05.07~09.14 1300 ZJ-VEM DE3FS RN1903V PN0544 FN3434
05.07~09.14 1500 ZY-VE DE5FS RN1903VRN1512V PN0544PN5562 FN3434
12.10~05.15 1500 ZY-VE DE 5DR HB RN1903VRN1194VRN2495V PN0544PN5562 DN1408 FN0630
12.10~05.15 1500 ZY-VE DE SDN RN1194VRN2495VRN1903V PN5562PN0544 DN1408 FN0630

Exemption from liability: the catalog data is advisory and can be used for reference only
