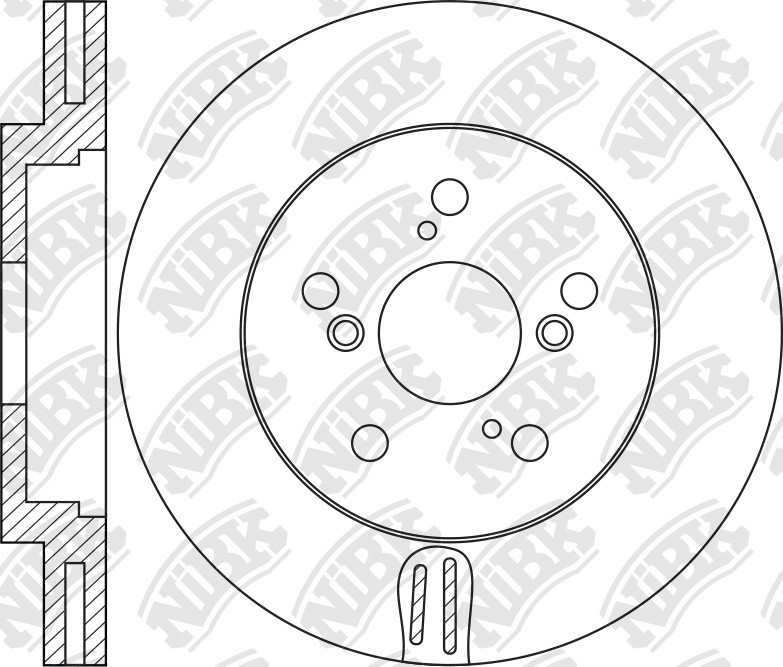

ROTOR DISC » RN2091V

Specification

Type
Vented
Outter Ø
299.8
Num. of holes
5
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
47.2
Centering Diameter
64.1
Pitch Circle Ø
114.3
Drum Ø:
154
Structure Material
G3000
Hole Ø:
12.8
Front/Rear
Front

Cross Reference

HONDA
45251-SJK-003
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.04~06.12 2400 K24A RR1 RN2091V PN2389 RN1383 PN8506 FN8003
05.04~11.13 2400 K24A RR2 RN2091V PN2389 RN1383 PN8506 FN8003
05.04~06.12 3000 J30A RR3 RN2091V PN2389 RN1383 PN8506 FN8003
05.04~10.13 3000 J30A RR4 RN2091V PN2389 RN1383 PN8506 FN8003
01.07~10.13 3500 J35A RR5 RN2091V PN2389 PN8506
01.07~10.13 3500 J35A RR6 RN2091V PN2389 RN1383 PN8506 FN8003

Exemption from liability: the catalog data is advisory and can be used for reference only
