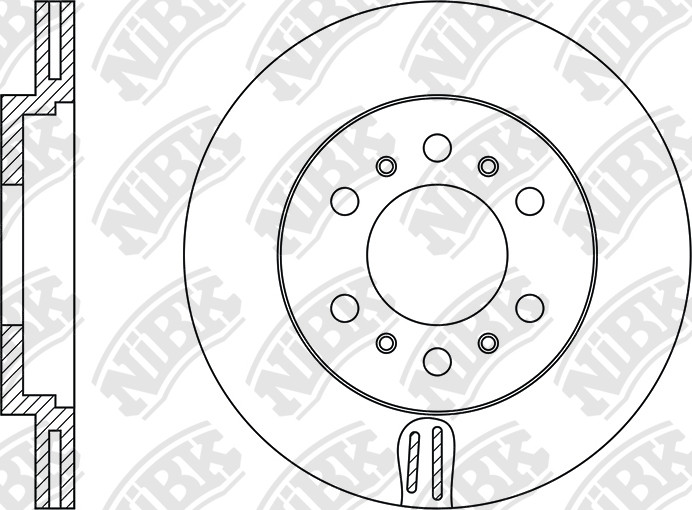

ROTOR DISC » RN1217V

Specification

Type
Vented
Disc Thickness (Max)
24
Num. of holes
6
Height
45.2
Centering Diameter
87
Front/Rear
Front
Pitch Circle Ø
108
Outter Ø
314
Drum Ø:
136
Disc Thickness (Min)
22.4
Structure Material
G3000

Cross Reference

MITSUBISHI
MB699716
MITSUBISHI
MR249205
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.96~01.07 2500 4D56 K74T RN1217V PN3808 FN6718
04.96~07.04 3500 6G74 K96W RN1217V PN3233 RN1119 PN3391FN0568
10.90~05.97 2500 4D65 V24W RN1217VRN1297V PN3172PN3233 RN1119 PN3280
04.91~07.00 3500 6G74 V45W RN1217VRN1297V PN3233 RN1119 PN3280 FN0568
08.98~02.09 2500 4D56 K94W RN1217V PN3233 RN1119 PN3391 FN0568
07.93~09.99 2800 V26W RN1217V PN3233 RN1119 PN3280 FN0568
10.90~09.99 3000 6G72 V23C RN1217V PN3233 RN1119 PN3280 FN0568
10.90~09.99 3000 6G72 V23W RN1217VRN1297V PN3233 RN1119 PN3280 FN0568

Exemption from liability: the catalog data is advisory and can be used for reference only
