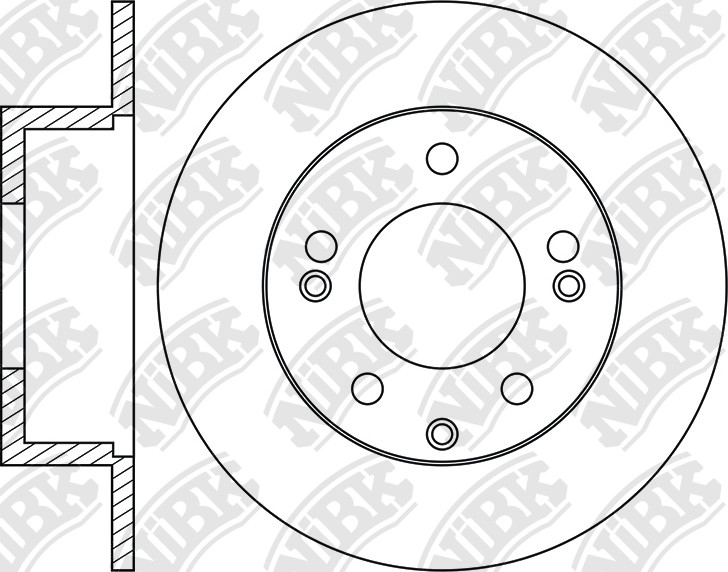

ROTOR DISC » RN1307

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
61.1
Centering Diameter
76
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
262
Drum Ø:
168
Disc Thickness (Min)
9

Cross Reference

HYUNDAI
58411-1H100
HYUNDAI
58411-1H300
HYUNDAI
58411-1K300
KIA
58411-1H300
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.09~12.11 1400 D4FC CW RN1174V PN0373 RN1307 PN0436
03.07~12.11 1400 G4FA FD RN1174V PN0373 RN1307 PN0436
03.07~12.11 1600 D4FB FD RN1174V PN0373 RN1307 PN0436
02.08~12.11 1600 G4FC CW RN1174V PN0373 RN1307 PN0436
01.07~01.11 1600 G4FC DC51 RN1412V PN0373 RN1307 PN0436 FN11006
01.09~ 1600 G4FC DC81 RN1412V PN0373 RN1307 PN0436 FN11006
01.07~12.11 1600 G4FC DC85 RN1412V PN0373 RN1307 PN0436 FN11006
03.07~12.11 2000 D4EA FD RN1174V PN0373 RN1307 PN0436
03.07~12.11 2000 G4GC CW RN1174V PN0373 RN1307 PN0436
01.14~ 1600 1600 CC - GAMMA WAGON - 5DR 5P RN1348V PN0052 RN1307 PN0436 FN11006
11.09~08.13 2000 G4KD TM10 RN1348V PN0052 RN1307 PN0436 FN11006
07.13~06.15 2000 G4NA TMZ14 RN1348V PN0052 RN1307 PN0436 FN11006
11.09~08.13 2000 G4KD TM10 RN1348V PN0052 RN1307 PN0436 FN11006
08.13~05.15 2000 G4NA TM14 RN1348V PN0052 RN1307 PN0436 FN11006
09.06~11.12 1600 D4FB ED RN1412V PN0373 RN1307 PN0436 FN11006
01.10~ 1600 G4FC BS RN1412V PN0373 RN1307 PN0436
05.12~ 1600 D4FB A212 RN1412V PN0373 RN1307 PN0436
05.15~07.18 1600 G4FD A216 RN1174VRN1412V PN0373 RN1307 PN0436
08.10~10.15 2000 G4KD SL RN1412V PN0704 RN1307 PN0436 FN11008
08.10~03.14 2400 G4KE SL RN1348V PN0052 RN1307 PN0436 FN11008

Exemption from liability: the catalog data is advisory and can be used for reference only
