NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1556

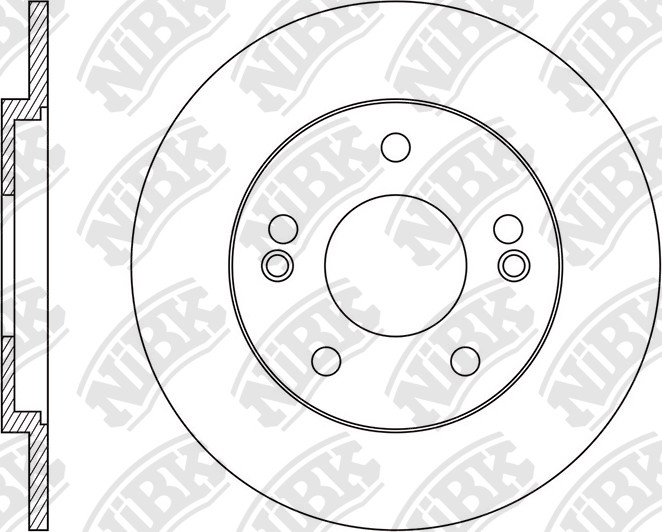

ROTOR DISC » RN1556

Specification

Type

Solid

Outter Ø

284

Num. of holes

5

Disc Thickness (Max)

10

Height

24.7

Centering Diameter

76

Pitch Circle Ø

114.3

Front/Rear

Rear

Drum Ø:

155

Disc Thickness (Min)

8.4

Structure Material

G3000

Cross Reference

HYUNDAI

58411-3Z100

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » i40

01.15~01.18	1600	G4FD	PDF15 SDN LHD	RN1348V	PN0052	RN1556	PN0538
01.18~	1600	G4FD	PDF18		PN0052	RN1556 RN1643	PN0538
02.11~09.17	1600	G4FD	VF	RN1644V	PN0052	RN1643 RN1556	PN0538 PN0591
02.11~06.15	1700	D4FD	DF	RN1348V	PN0052	RN1556	PN0538
02.11~06.15	2000	G4NA	PDF12 WGN LHD	RN1348V	PN0052	RN1556	PN0538
02.11~06.15	2000	G4NA	PDF12 WGN RHD	RN1348V	PN0052	RN1556	PN0538
01.15~01.18	2000	G4NA	PDF15 SDN LHD	RN1348V	PN0052	RN1556	PN0538
02.11~06.15	2000	G4NC	LC81	RN1348V	PN0052	RN1556	PN0538
