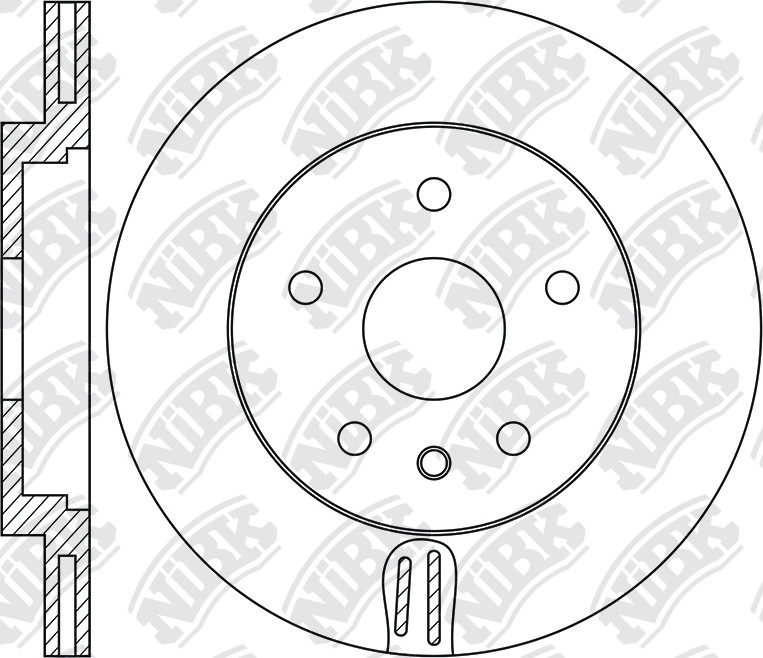

ROTOR DISC » RN1730V

Specification

Type
Vented
Front/Rear
Rear
Outter Ø
365
Num. of holes
5
Disc Thickness (Max)
25
Height
49
Centering Diameter
79
Pitch Circle Ø
120
Drum Ø:
189
Disc Thickness (Min)
23
Structure Material
G3000

Cross Reference

LAND ROVER
LR033303
LAND ROVER
LR099038
LAND ROVER
LR161899
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.19~ 3000 AJ20P6 L663 RN1733V PN0567 RN1730V PN47001
12.20~ 3000 AJ20P6 L462 RN1733V PN0567 RN1730V PN47001
10.17~04.22 2000 P400e L405 PN0488PN0488WPN0941PN0567PN47004 RN1730V PN47001
09.12~10.21 4400 448DT L405 RN1733V PN0567 RN1730V PN47001
11.17~04.22 5000 508PS L405 RN1733V PN0567 RN1730V PN47001
05.17~05.22 2000 AJ200P/PT204 P400e RN1733V PN0567 RN1730V PN47001
04.13~05.17 3000 306DT (292PS) WA RN1733V PN0567 RN1730V PN47001
03.13~10.17 4400 448DT L494 RN1733V PN0567 RN1730V PN47001
08.13~04.22 5000 508PS L494 RN1733V PN0567 RN1730V PN47001
01.13~05.17 5000 508PS WA RN1733V PN0567 RN1730V PN47001
04.13~05.17 5000 508PS WR RN1733V PN0567 RN1730V PN47001
09.12~09.21 4400 448DT GA RN1733V PN0567 RN1730V PN47001

Exemption from liability: the catalog data is advisory and can be used for reference only
