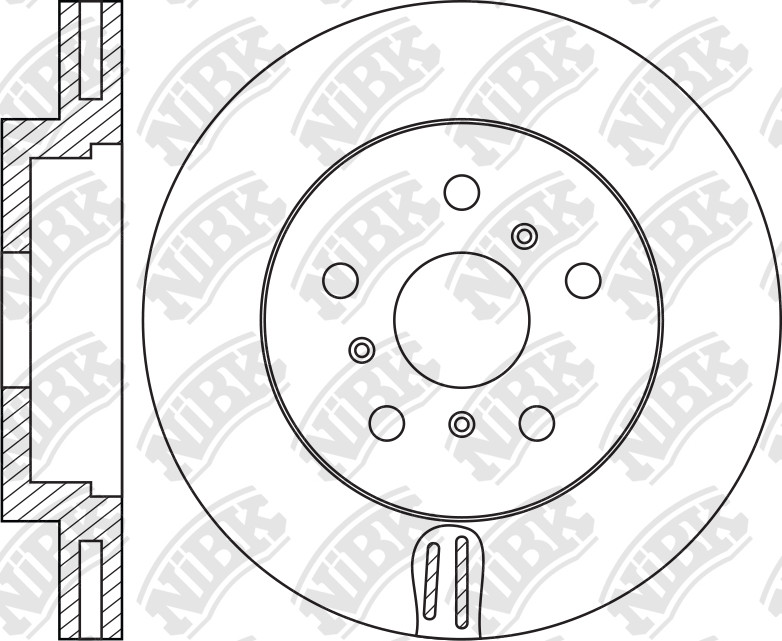

ROTOR DISC » RN2112V

Specification

Type
Vented
Outter Ø
255
Num. of holes
5
Disc Thickness (Max)
25
Disc Thickness (Min)
25
Height
48
Centering Diameter
54
Pitch Circle Ø
100
Drum Ø:
130
Structure Material
G3000
Front/Rear
Front

Cross Reference

BENDIX
561501B
TOYOTA
43512-32120
TOYOTA
43512-32130
TOYOTA
43512-32200
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.86~12.91 1800 1SILU SV10 RN2112V PN1281 PN1321 FN0633
08.86~12.91 2000 3S-FE SV25L RN2112V PN1281 PN1321 FN0633
01.87~12.91 2500 2VZ-FE VZV21R RN2112V PN1281 RN1232 PN1321 FN2308
04.87~07.90 2000 1VZ-FE VZV20 RN2112V PN1281 RN1232 PN1321 FN0633

Exemption from liability: the catalog data is advisory and can be used for reference only
