The attacks of rotors and scorching process
Its when the rotor material "attacks" brake pad surfase.

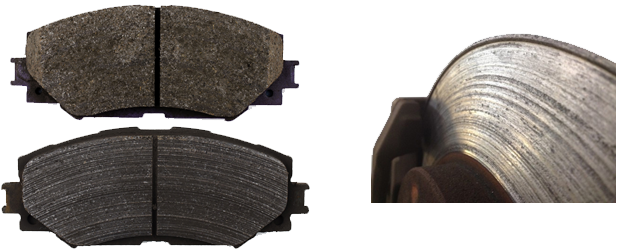

Characteristic damages:

In normal braking process the brake pad material travels to rotor surface to create the friendly braking layer.
The hardness is most important (but not the only) physical property is responsible for this process.
SAE J431 G3000 standards for the automotive brake rotor and drum includes Hardness range by Barinell from 187 to 241.
(See below Rotors material quality)
Non abrasive Ceramic Brake pads are more susceptible to low hardness compared to relatively soft metallic brake pad formulation.
The hardness should stay above 200 same as most of Japanese OE rotors are.

The scorching heats the matrix of the friction material to 600-700°C, allowing carbonization to occur to the first 0.5 to 1.5mm of brake pad surface.
It is good prevention against rotors attack for aftermarket rotors which is normaly produced with Hardness 170-200.
Besides, it reduce the bedding-in time on replacement brake pads to a minimum with ready to use soft carbonization layer.

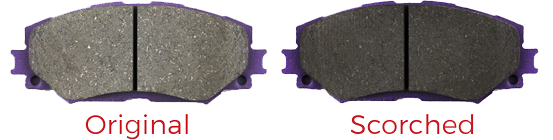

Here is the same formula appearance with and without scorching.


Rotors material quality.
Rotors are usually made of gray iron due to its superior heat handling and damping (vibration absorption) character.
The quality are depends on combination of Physical properties, Chemical composition and Inferior microstructure.

Physical properies
Specified by SAE J431 G3000 standards for the automotive brake rotor and drum includes:
1. Hardness by Barinell: 187-241,
2. Minimum tensile strength of 30,000 psi

Chemical composition G3000 gray iron:
Carbon 3.10%-3.40%,
Silicon 1.90%-2.30%,
Manganese 0.60%-0.90%,
Sulfur Max 0.15%,
Phosphorus Max 0.15%,
Total Carbon equivalent of 3.9%-4.15

Inferior microstructure.
Pearlitic microstructure = the graphite distribution and matrix structure of the cast iron.
This matrix should be predominantly pearlite, with not more than 5% ferrite and less than 1% cementite.
This matrix should be predominantly pearlite, with not more than 5% ferrite and less than 1% cementite.

The flake graphite form (magnifition 100X)
