Dustless & Rotor Friendly
For All Aplication!


The underlying philosophy behind all NiBK friction materials is based on a single fact that no single formula is able to deliver the ideal characteristics necessary for top performance and reliability for all applications.
That is why each NiBK friction formula is individually created for optimal performance in the specific vehicle type it is used for.

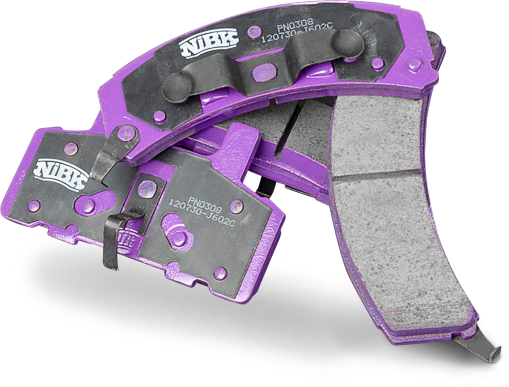

BRAKE PADS FORMULA

NiBK material groups


A. The Class of formulas for all types of automotive and light industry vehicles.
Includes a wide range of friction materials marked (at back plate) as J112C, J113C, J509C, J620C, J705L, J703L. Different materials are needed to cover an extensive range of applications in automotive and industrial vehicles. Each formula is optimally brewed for its specific purposes in each vehicle class it is used for. The base materials used here are Non Asbestos Organic (NAO), Nonabrasive Low Metallic (NALM) and several types of quality Ceramic wools (CEM) with different additives and unique production processes. All the above materials are environmentally friendly - with lowest brake dust levels to protect the environment and keep your rims free of unsightly brake dust. The friction class by LINK dynamic test for all formulations is from “F” to “G”. It guarantees drivers highest road safety with high resistance to FADE (brake power loss in extreme situation). The extensive available range of options ensures comfortable and effective brake filing for each different car and driving style. Ensuring safety and long life of brake rotor.
B. Sport Oriented Formulas.
Features proven performance materials. The back plate marks are J701S, J710C, J703S. Material from this group are specifically engineered for sport applications to create great braking force graded from "H" to "I" by LINK dynamic friction test. The unmatchable resistance to heat and fast heat recovery provides high performance needed in top levels of competitive motoring like rallies and circuit racing. It should be used only with sport designed rotors and callipers to achieve the desired performance.
C. Heavy Duty Formulas.
Fabricated with a combination of Rock Wool and Steel Fibre for Large Off-Highway Vehicles such as Cranes and Off-Road Trucks. It has high structural integrity and known for its long service life, friendliness to the rotor and all-round consistency of performance.
SHOES AND LININGS
D. Brake Shoe for Passenger cars
Organic and non-ferrous fibres formulation specially designed to provide safe and comfortable drive for passenger vehicles. It is an ultra-quiet, low dust and long lasting material. It is gentle on brake drums and has a stable coefficient of friction over a wide range of temperatures and speeds. It is well known for its qualities of smooth progressive braking and great safety in extreme braking.
E. Brake Shoe and Lining for trucks and buses
A unique combination of Rock Wool and Steel Fibre. Contains brass, acrylic and glass fibres blended with good structural integrity. This formula perfectly suits air brake systems used in commercial vehicles. It has excellent heat stability and is designed to work with great radial and tangential loads. It is gentle on the mating surface and consistent in performance over a wide range of cycles.
F. Brake linings for Heavy Duty and Off – Highway Vehicles
High structural integrity and fabricated with specialized steel wool. It has very short burnishing-in period and uniform material distribution. This material is designed to work in severe.
DISC ROTOR
Understandably when, choosing a good quality high performing Brake Rotor is as critical as choosing brake pads. Together they perform as one united component– combining to provide the stopping power needed in normal operating conditions as well as in high stopping emergency situations.

The great advantage of NiBK brake pads NiBK ROTOR FRIENDLY Technology and Low Dust formulation keeps your brake disc last longer and leaves wheels cleaner. Installing NiBK on brand new or undamaged, by other brake pads, rotors and use NiBK pads continuously you will see great improvement of your rotor lifespan. With the combination of NiBK pads and rotors, you will see the best performance result of both.

All NIBK brake rotors are manufactured to match the exact OE fit, OE construction, and precision finishing to ensure quick and easy installation, as well as trouble-free functionality for the life of the rotor. NIBK Brake Rotors are designed to provide the finest braking experience – from break in throughout the life of the rotor, reducing the chance of warping even under extreme braking temperatures.
NiBK Rotor Design

NiBK Standard Design Rotor (Blank/Plain Rotor)
* Precise Tolerant
* < 100gr balancing standard approved by all countries include EU
* It is suitable for all car and trucks

All NIBK brake rotors are manufactured to match the exact OE fit, OE construction, and precision finishing to ensure quick and easy installation, as well as trouble-free functionality for the life of the rotor. NIBK Brake Rotors are designed to provide the finest braking experience – from break in throughout the life of the rotor, reducing the chance of warping even under extreme braking temperatures.

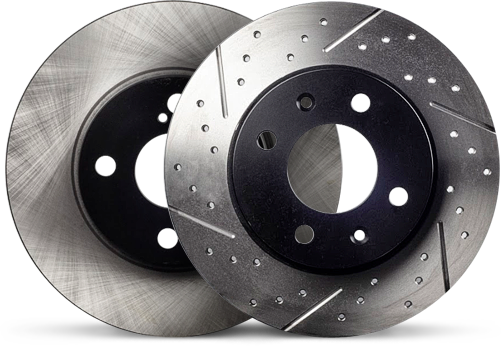

NiBK Drilled and Slotted Brake Rotor
* Enhanced braking power
* Continuous cleaning of the brake and surface from brake dust and water
* Cooler operating temperatures
* Slots also serve as a wear indicator

The slot design improves the brake system performance by wiping away the debris of used friction material that would otherwise accumulate between the rotor and pad. This keeps fresh pad material exposed to the rotor surface and helps prevent pad glazing. The edges sweeping the pad slightly increase the effective coefficient of friction, or “bite,” amplifying brake system response to pedal input.
As an important benefit, by providing an escape path for water, slotted rotors can also improve initial brake
