NiBK Brakes:: Application Cross Reference and Image for NiBK : MOTORCYCLE BRAKE PADS : PM225S

MOTORCYCLE BRAKE PADS » PM225S

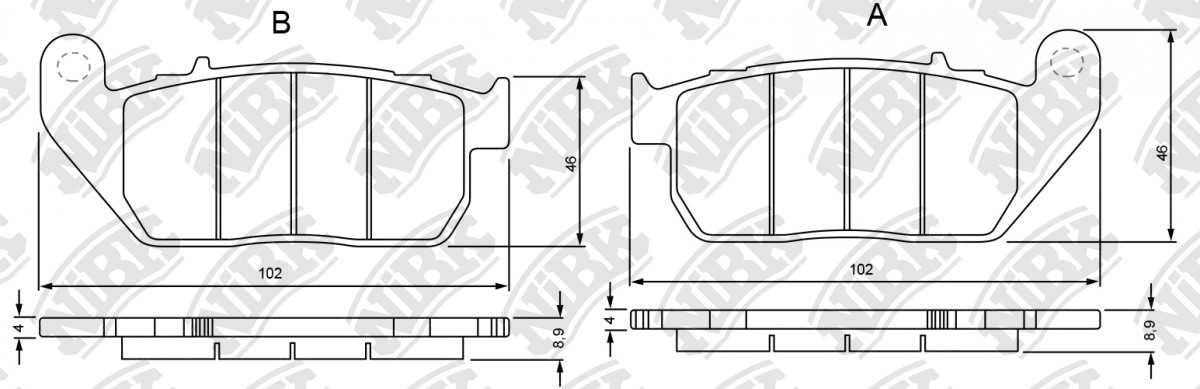

Specification

Length-1

102

Width-1

46

Length-2

102

Thick-2

8.9

TYP

S

Variation

Cross Reference

HARLEY DAVIDSON

42831 04

HARLEY DAVIDSON

42831 04A

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HARLEY DAVIDSON » XL-1200

01.04~01.07	1200				PM225		PM224
01.04~01.08	1200				PM225		PM224
01.07~01.07	1200				PM225		PM224
01.08~	1200				PM225		PM224
01.10~	1200				PM225		PM224

HARLEY DAVIDSON » XL-883

01.04~01.07	883				PM225		PM224
01.04~01.08	883				PM225		PM224
01.04~01.10	883				PM225		PM224
01.05~01.09	883				PM225		PM224
01.06~	883				PM225		PM224
01.09~	883				PM225		PM224
01.10~	883				PM225		PM224
01.11~	883				PM225		PM224
