ROTOR DISC » RN1027V

RN1027V

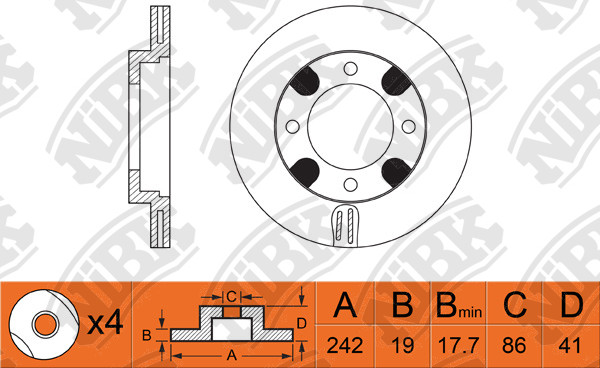

Specification

Type
Vented
Disc Thickness (Max)
19
Num. of holes
4
Height
41
Centering Diameter
86
Front/Rear
Front
Outter Ø
242
Pitch Circle Ø
104
Drum Ø:
143
Disc Thickness (Min)
17.5
Structure Material
G3000

Cross Reference

BENDIX
561521B
BENDIX EUR
561521B
HYUNDAI
5171221350
HYUNDAI
5171221B00
HYUNDAI
5171224100
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Accent

04.94~08.99 1300 G4EH X3 RN1027V PN0091 DN1469DN1466 FN11162
04.02~06.06 1500 D3DA C# RN1027V PN0091 FN11909
09.99~10.02 1500 G4#K CF RN1027V PN0091 FN11909
09.99~10.02 1500 G4#K CG RN1027V PN0091 DN1471DN1473 FN11909FN11189
04.94~08.99 1500 G4EK 4DR SDN LHD RN1027V PN0091 DN1469DN1466 FN11162
04.94~08.99 1500 G4EK 4DR SDN RHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~08.99 1500 G4EK 5DR HB LHD RN1027V PN0091 DN1466DN1469 FN11162
04.94~08.99 1500 G4EK 5DR HB RHD RN1027V PN0091 DN1469DN1466 FN11162

HYUNDAI   »   Accent (USA)

01.00~01.04 1600 G4ED-G LC RN1027V PN0091 FN11909

HYUNDAI   »   Pony

09.94~12.99 1300 G4EH X2 RN1027V PN0091 FN11162
09.94~12.99 1500 G4EK X2 RN1027V PN0091 FN11162
09.94~12.99 1500 G4EK X3 RN1027V PN0091 FN11162

HYUNDAI   »   S-Coupe

09.92~06.96 1500 G4EK VE3N RN1027V PN0091 DN1500 FN11162
