ROTOR DISC » RN1221V

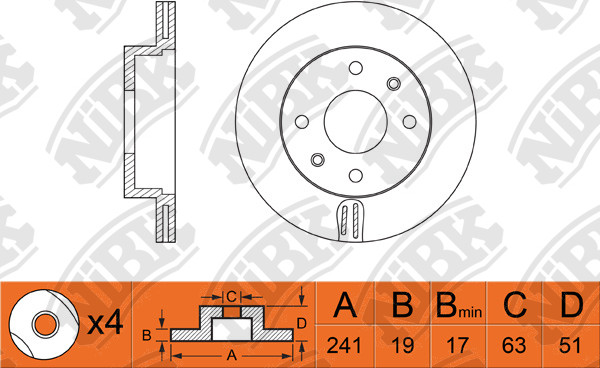

Specification
Type
Vented
Disc Thickness (Max)
19
Num. of holes
4
Height
52
Centering Diameter
63
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
241
Drum Ø:
126
Disc Thickness (Min)
17
Structure Material
G3000
Cross Reference
BENDIX
562273B
HYUNDAI
51712-25010
HYUNDAI
51712-25060
HYUNDAI
51712-25061
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.99~06.06 | 1300 | G4EA | CG 5DR HB RHD | RN1221V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 09.99~06.06 | 1300 | G4EA | CG SDN LHD | RN1221V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 09.99~06.06 | 1300 | G4EA | HB LHD | RN1221V | PN0091 | DN1473DN1471 | FN11909FN11189 | |
| 01.00~06.06 | 1300 | G4EH | LC | RN1221V | PN0091 | DN1473DN1471 | FN11909FN11189 | |
| 07.99~04.03 | 1500 | G4EB | CH LHD | RN1221V | PN0091 | DN1471 | FN11909 | |
| 09.99~06.06 | 1500 | G4EB | CH RHD | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 09.99~01.07 | 1500 | G4EB | CH41 LHD | RN1221V | PN0091 | DN1473 | FN11189 | |
| 03.01~08.12 | 1500 | G4EB | LC (RUS) | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 04.01~01.12 | 1500 | G4EC-G | LC (RUS) | RN1221V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 01.00~06.06 | 1600 | G4ED | LC | RN1221V | PN0091 | DN1473DN1471 | FN11909PN0436FN0617 |
