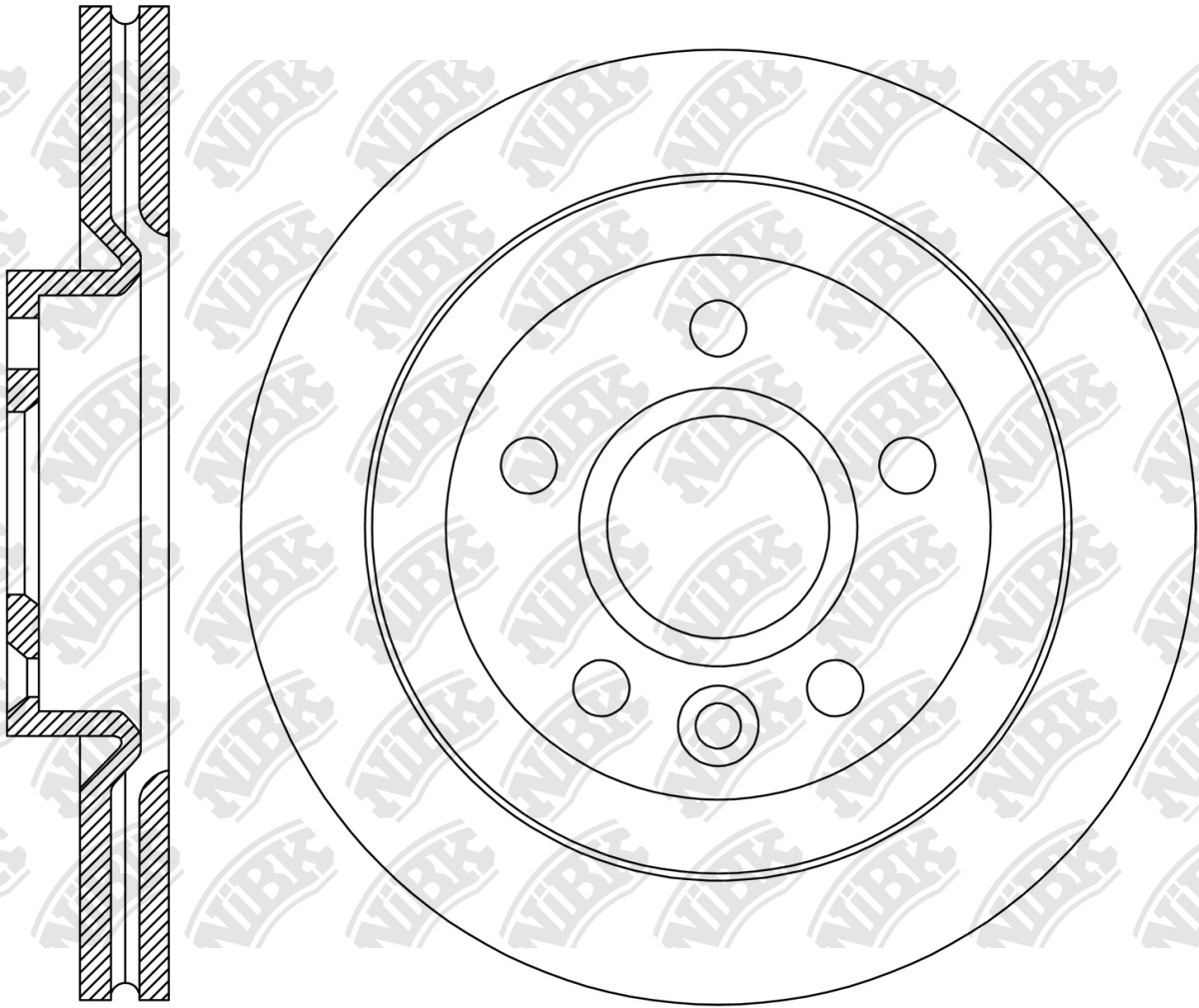

ROTOR DISC » RN2802V

RN2802V

Specification

Type
Vented
Outter Ø
296
Num. of holes
5
Hole Ø:
16
Disc Thickness (Max)
28
Disc Thickness (Min)
25.5
Height
47
Centering Diameter
63.6
Pitch Circle Ø
108
Drum Ø:
141
Front/Rear
Front
Structure Material
G3000

Cross Reference

VOLVO
31423722
VOLVO
32424723
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

VOLVO   »   V60

02.18~ 2000 B4204T23 ZW10A SG RN1952VRN2258VRN2802V PN0696PN0747 RN1930VRN2334 PN0892PN0650
02.18~ 2000 B420T5 ZWK SG B4 RN1952VRN2258VRN2802V PN0696PN0747 RN1930VRN2334 PN0650PN0892

VOLVO   »   V90 Cross Country

12.16~08.20 2000 B4204T27 PW T6 SG RN1952VRN2258VRN2802V PN0696PN0747 RN2334RN1930V PN0650PN0892

VOLVO   »   V90 II

03.16~06.20 2000 B4204T27 V542 WGN T6 RHD SG RN1952VRN2258VRN2802V PN0696PN0747 RN1930VRN2334 PN0650PN0892
