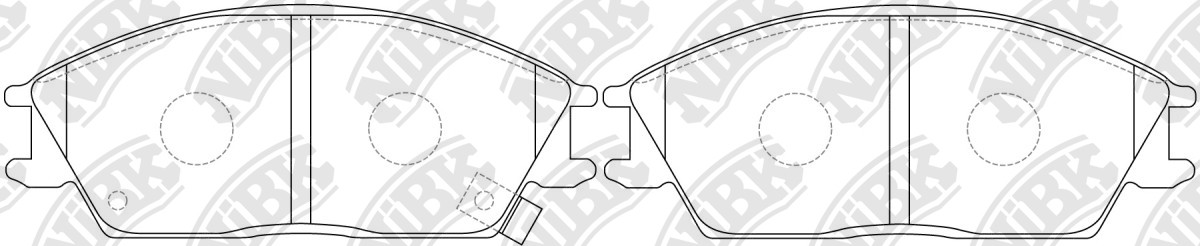

BRAKE PADS » PN0091HD
Specification
Length-1
127.4
Width-1
49
Thickness-1
14.3
Pcs In Set
4
Variation
Cross Reference
AKEBONO
A-173K
AKEBONO
AN-173K
AKEBONO
AN-173WK
BENDIX AUS
DB1124
BENDIX AUS
DB1252
BENDIX EUR
572268B
BENDIX EUR
572269B
FMSI
D404
FMSI
D404-7239
FMSI
D404-7293
FMSI
D440
FMSI
D440-7293
FMSI
D497
FMSI
D497-7376
HI-Q
SP1047
HONDA
45022-SA6-600
HONDA
45022-SA6-N50
HONDA
45022-SA6-N51
HONDA
45022-SA6-N52
HYUNDAI
58101-1CA00
HYUNDAI
58101-1CA10
HYUNDAI
58101-22A00
HYUNDAI
58101-22A10
HYUNDAI
58101-24A00
HYUNDAI
58101-24B00
HYUNDAI
58101-24C00
HYUNDAI
58101-25A10
HYUNDAI
58101-25A20
HYUNDAI
58101-28A10
HYUNDAI
58101-32300
HYUNDAI
58101-32310
HYUNDAI
58101-32B00
HYUNDAI
58101-4NA30
HYUNDAI
5810125A00
HYUNDAI
58115-24101
HYUNDAI
58115-241S0
KASHIYAMA
D0070
KASHIYAMA
D11091
KASHIYAMA
D11091M
KASHIYAMA
D5076
WVA
21012
WVA
21773
WVA
21774
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.99~06.06 | 1300 | G4EA | CG 5DR HB RHD | RN1221V | PN0091 | DN1473DN1471 | FN11909FN11189 | |
| 09.99~06.06 | 1300 | G4EA | CG SDN LHD | RN1221V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 09.99~06.06 | 1300 | G4EA | HB LHD | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 01.00~06.06 | 1300 | G4EH | LC | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 04.94~08.99 | 1300 | G4EH | X3 | RN1027V | PN0091 | DN1469DN1466 | FN11162 | |
| 04.02~06.06 | 1500 | D3DA | C# | RN1027V | PN0091 | FN11909 | ||
| 04.02~06.06 | 1500 | D3EA | LC | PN0091 | FN11909 | |||
| 09.99~10.02 | 1500 | G4#K | CF | RN1027V | PN0091 | FN11909 | ||
| 09.99~10.02 | 1500 | G4#K | CG | RN1027V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 07.99~04.03 | 1500 | G4EB | CH LHD | RN1221V | PN0091 | DN1471 | FN11909 | |
| 09.99~06.06 | 1500 | G4EB | CH RHD | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 09.99~01.07 | 1500 | G4EB | CH41 LHD | RN1221V | PN0091 | DN1473 | FN11189 | |
| 03.01~08.12 | 1500 | G4EB | LC (RUS) | RN1221V | PN0091 | DN1471DN1473 | FN11909FN11189 | |
| 04.01~01.12 | 1500 | G4EC-G | LC (RUS) | RN1221V | PN0091 | DN1473DN1471 | FN11189FN11909 | |
| 04.94~08.99 | 1500 | G4EK | 4DR SDN LHD | RN1027V | PN0091 | DN1469DN1466 | FN11162 | |
| 04.94~08.99 | 1500 | G4EK | 4DR SDN RHD | RN1027V | PN0091 | DN1469DN1466 | FN11162 | |
| 04.94~08.99 | 1500 | G4EK | 5DR HB LHD | RN1027V | PN0091 | DN1466DN1469 | FN11162 | |
| 04.94~08.99 | 1500 | G4EK | 5DR HB RHD | RN1027V | PN0091 | DN1466DN1469 | FN11162 | |
| 01.00~06.06 | 1600 | G4ED | LC | RN1221V | PN0091 | DN1473DN1471 | FN0617FN11909PN0436 |
| 05.95~05.01 | 1600 | G4GR | J2 | RN1007V | PN2245PN0091 | DN1467RN1130 | PN2130FN11158 | |
| 03.95~04.00 | 2000 | G4GF | J2 | PN2245PN0091 | DN1467 | PN2130FN11158 |
| 06.06~09.11 | 1100 | G4HG | 5DR HB VTN | RN1779VRN1199V | PN0091 | DN1507DN1508 | FN0610FN0609 | |
| 07.02~12.06 | 1100 | G4HG | BT51 5DR RHD | RN1779VRN1199V | PN0091 | DN1507 | FN0610 | |
| 11.06~09.11 | 1100 | G4HG | BT51 5DR RHD | RN1779VRN1199V | PN0091 | DN1507 | FN0610 | |
| 07.02~10.06 | 1300 | G4EA | BT31 3DR LHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 07.02~10.06 | 1300 | G4EA | BT51 5DR LHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 07.02~10.06 | 1300 | G4EA | BU51 5DR RHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 10.05~09.11 | 1400 | G4EE | BT51 5DR LHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 10.05~09.11 | 1400 | G4EE | BT51 5DR RHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 09.02~10.06 | 1400 | G4EE | BU31 3DR RHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 09.02~10.06 | 1400 | G4EE | BU51 5DR RHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 10.06~09.11 | 1400 | G4EE | BU51 5DR RHD | RN1779V | PN0091 | DN1507 | FN0610 | |
| 09.02~10.05 | 1500 | D3EA | PA02 | RN1199V | PN0091 | DN1508 | FN0609 | |
| 10.05~09.11 | 1500 | D4FA | BT51 5DR | RN1199V | PN0091 | RN1778DN1508 | PN0539FN0609 | FN0661 |
| 09.02~10.06 | 1600 | G4ED | BU31 3DR RHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 10.06~09.11 | 1600 | G4ED | BU31 3DR RHD | RN1199V | PN0091 | DN1508 | FN0609 | |
| 09.02~10.05 | 1600 | G4ED | BU51 | RN1199V | PN0091 | DN1508 | FN0609 |
