ROTOR DISC » RN1045

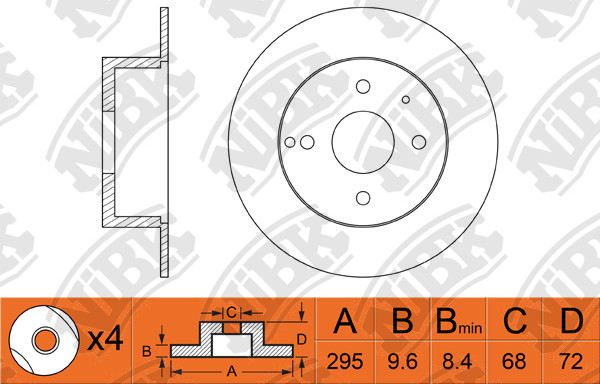

Specification

Type
Solid
Disc Thickness (Max)
9.6
Num. of holes
4
Height
72
Centering Diameter
68
Front/Rear
Rear
Outter Ø
295
Disc Thickness (Min)
8.4
Pitch Circle Ø
108
Drum Ø:
178
Structure Material
G3000

Cross Reference

BENDIX
561681B
OEM
271490
OEM
271497
VOLVO
2714970
VOLVO
31262090
VOLVO
3516882
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.94~10.96 2000 B5204FS RN1287VRN1055V PN0020 RN1045 PN0007 FN0552
08.93~10.96 2300 B5234FT RN1287VRN1055V PN0020 RN1045 PN0007 FN0552
01.94~10.96 2400 B5252FS RN1055VRN1287V PN0020 RN1045 PN0007 FN0552
01.94~10.96 2400 B5254FS RN1055VRN1287V PN0020 RN1045 PN0007 FN0552
12.95~10.96 2500 D5252T RN1055VRN1287V PN0020 RN1045 PN0007

Exemption from liability: the catalog data is advisory and can be used for reference only
