NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1312V

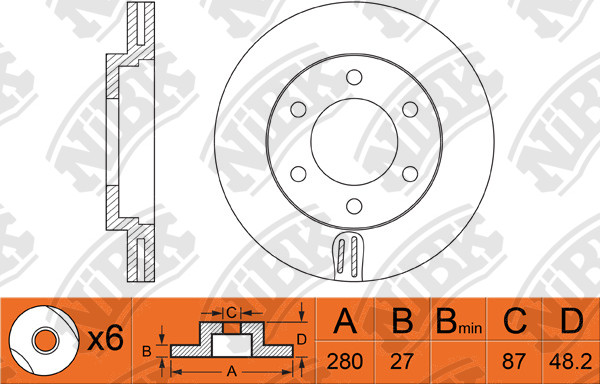

ROTOR DISC » RN1312V

Specification

Type

Vented

Disc Thickness (Max)

27

Num. of holes

6

Height

42.8

Centering Diameter

87

Front/Rear

Front

Pitch Circle Ø

108

Outter Ø

280

Drum Ø:

136

Structure Material

G3000

Cross Reference

HYUNDAI

51712H1000

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » Terracan

02.01~09.04	2500	D4BH (4D56)	PA00	RN1312V	PN0853		PN0098	FN0631
02.01~06.04	2900	J3	HP LHD	RN1312V	PN0853		PN0098	FN0631
02.01~06.04	3500	G6CU	HM81	RN1312V	PN0853		PN0098	FN0631
06.04~01.08	3500	G6CU	HM81	RN1312V	PN0853		PN0098	FN0631
