ROTOR DISC » RN1337V

RN1337V

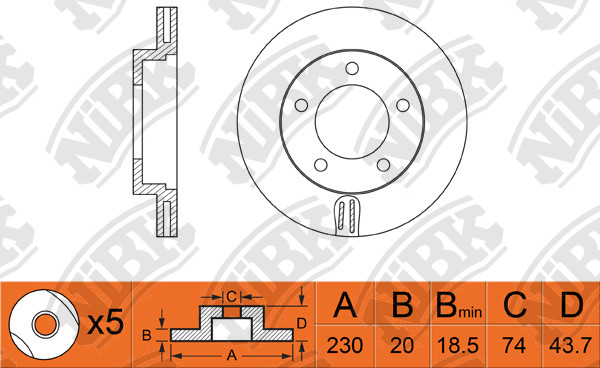

Specification

Type
Vented
Disc Thickness (Max)
20
Num. of holes
5
Height
43.7
Centering Diameter
74
Front/Rear
Front
Pitch Circle Ø
94
Outter Ø
230
Disc Thickness (Min)
18
Drum Ø:
95
Structure Material
G3000

Cross Reference

TOYOTA
43512-27070
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Deliboy

07.89~11.95 1500 5K KXC10V RN1337V PN1328FN2296 DN1250 FN2232 FN2298
