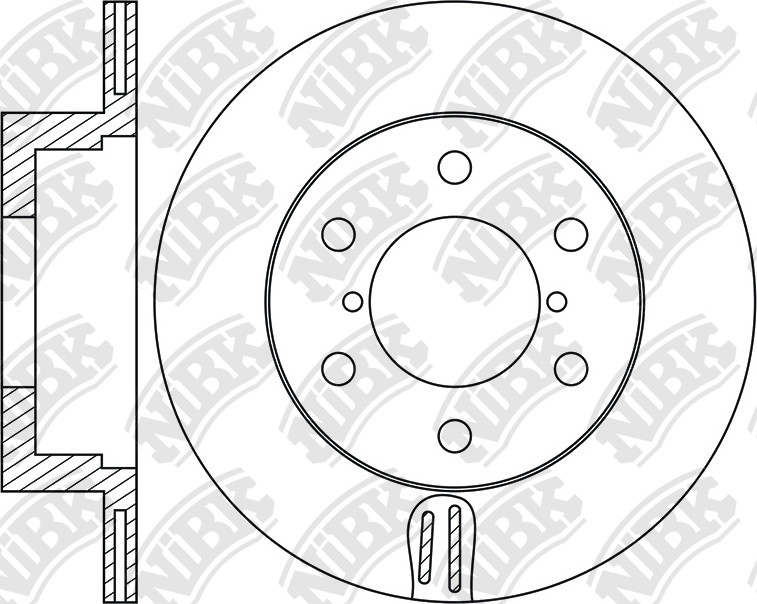

ROTOR DISC » RN1401V

Specification

Type
Vented
Disc Thickness (Max)
18
Num. of holes
6
Height
74.4
Centering Diameter
94
Pitch Circle Ø
139.7
Front/Rear
Rear
Outter Ø
332
Drum Ø:
210
Disc Thickness (Min)
16
Structure Material
G3000

Cross Reference

MITSUBISHI
4615A037
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.06~ 3800 6G75 V97W RN1400V PN1482 RN1401V PN1243 FN0649
10.06~ 3200 4M41-T V98W RN1400V PN1482 RN1401V PN1243 FN0649
10.06~10.12 3800 6G75 V97W RN1400V PN1482 RN1401V PN1243 FN0649

Exemption from liability: the catalog data is advisory and can be used for reference only
