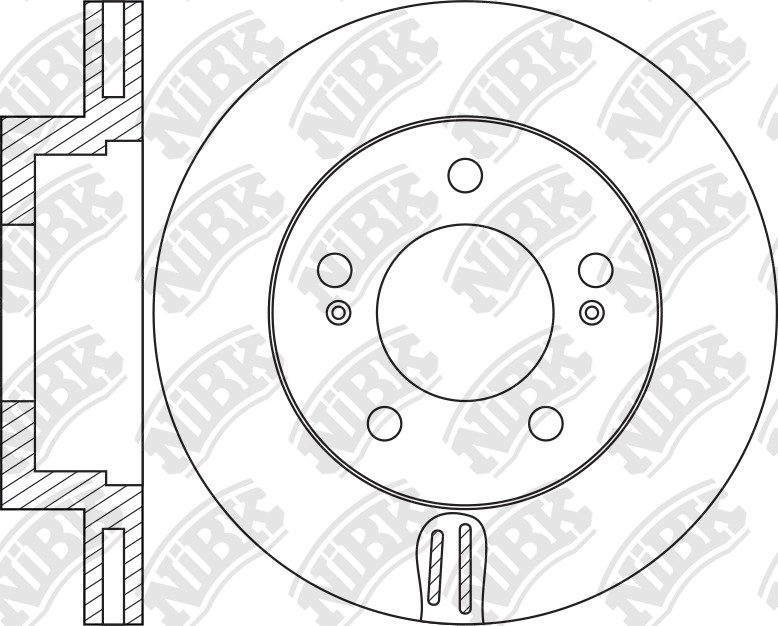

ROTOR DISC » RN1456V

Specification

Type
Vented
Disc Thickness (Max)
28
Num. of holes
5
Height
68
Centering Diameter
85
Front/Rear
Front
Pitch Circle Ø
130
Outter Ø
300
Drum Ø:
162
Disc Thickness (Min)
25.4
Structure Material
G3000

Cross Reference

SSANGYONG
4144121000
SSANGYONG
4144121001
SSANGYONG
4144121002
SSANGYONG
4144121003
SSANGYONG
4144122000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.04~02.13 2700 D27DT MPV -7P RN1456V PN0103 RN1749V PN0797 FN0750
05.07~07.13 3200 G32D MPV -11P RN1456V PN0103 RN2265V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -7P RN1456V PN0103 RN2265VRN1749V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -9P LHD RN1456V PN0103 RN1749VRN2265V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -9P RHD RN1456V PN0103 RN1749VRN2265V PN0797 FN0750
08.15~03.19 2200 D22DTR MPV -7P RN1456V PN0103 RN1749V PN0797 FN0750
01.13~03.16 3200 E32 MPV -7P RN1456V PN0103 RN1749VRN2265V PN0797 FN0750

Exemption from liability: the catalog data is advisory and can be used for reference only
