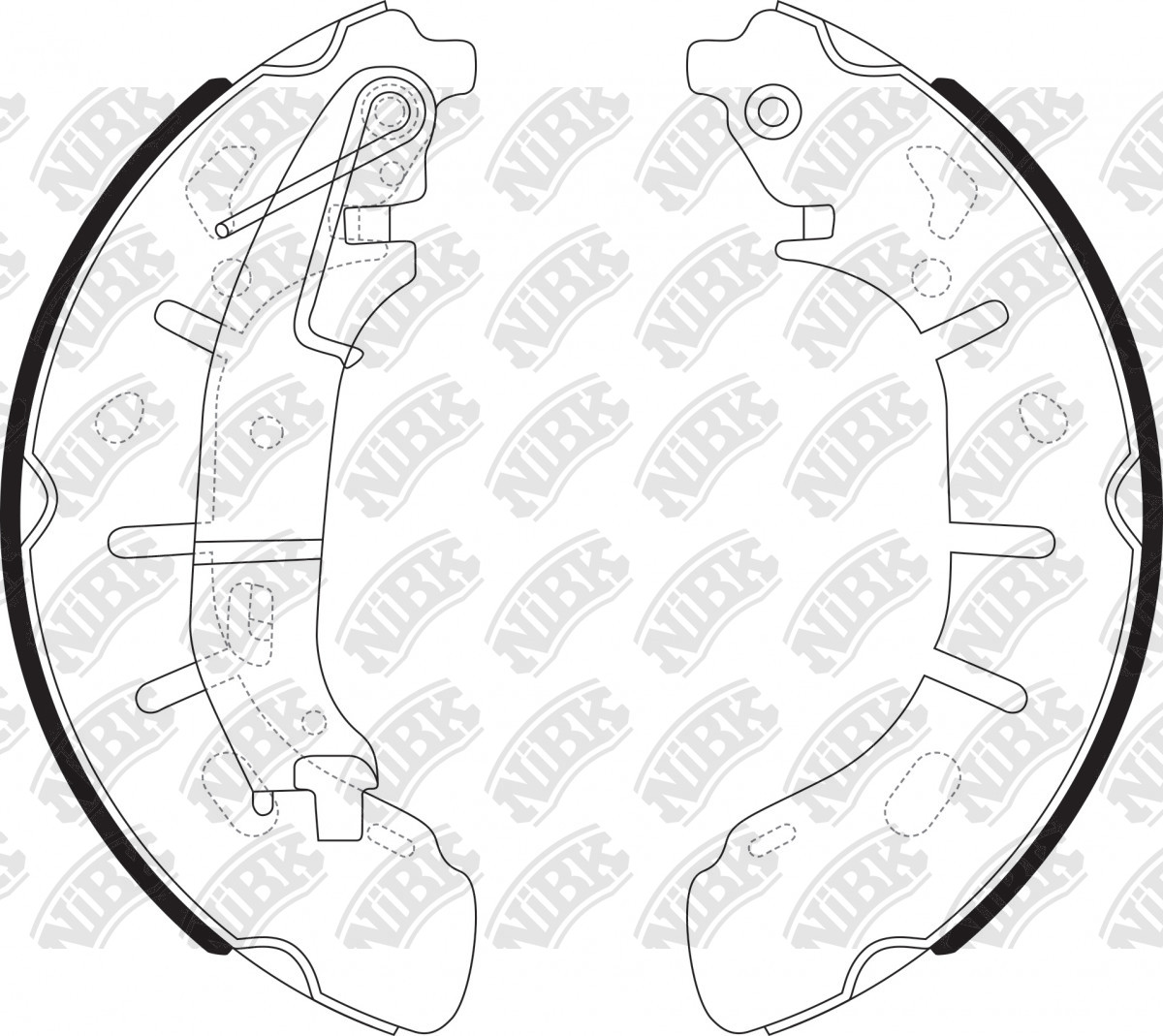

BRAKE SHOE » FN41001

Specification

Radius
127
Width
57
Thickness
6.5
Pcs In Set
4
Notes
FIAT - DOBLO (263)

Cross Reference

CHRYSLER
68261 839AA
CHRYSLER
68283 192AA
FIAT
51928531
FIAT
77365346
FIAT
77367388
FMSI
S1080-1733
GM
95515317
GM
95530529
OPEL
16 05 188
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.09~01.15 1400 843 A1.000 263.111.0.5 RN1022V PN0748WPN0187W DN1697 FN41001
01.09~01.15 1600 198 A3.000 263.223.0.5 RN3007V PN0187W DN1697 FN41001
01.09~01.16 1600 263 A5.000 263.216.0.5 RN3007V PN0748WPN0187W DN1697 FN41001
02.10~ 1400 843 A1.000 152.731.0.5 RN3007V PN0748W FN41001
01.09~10.15 1300 4146296 8113877 RN1022V PN0187W DN1697 FN41001
10.15~ 1600 263 A5.000 263.216.1.5 RN3007VRN1022V PN0187WPN0748W FN41001
10.15~ 1600 263 A5.000 263.226.1.5 RN3007V PN0748W FN41001
10.15~ 1600 263 A8.000 263.223.1.5 RN3007V PN0748W FN41001
01.12~01.18 1600 A16FDH X12 RN3007V PN0748W FN41001
01.12~01.18 1600 A16FDL X12 RN3007V PN0748W FN41001
09.14~ 2400 ED6 VM PN0748W DN1638 FN41001

Exemption from liability: the catalog data is advisory and can be used for reference only
