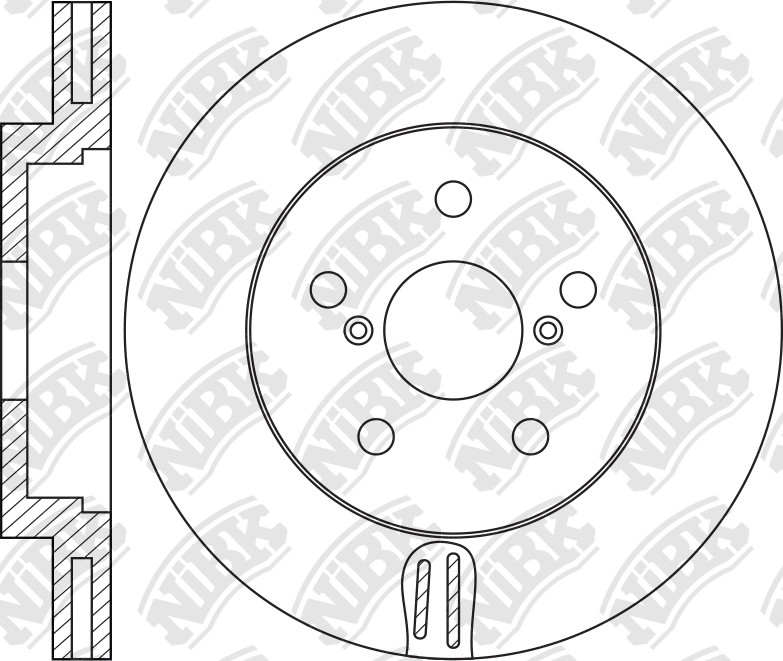

ROTOR DISC » RN1471V
Specification
Type
Vented
Disc Thickness (Max)
26
Num. of holes
5
Height
49.2
Centering Diameter
62
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
295
Drum Ø:
143
Disc Thickness (Min)
24
Structure Material
G3000
Cross Reference
TOYOTA
43512-02210
TOYOTA
43512-0F030
TOYOTA
43512-12680
TOYOTA
4351202190
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.07~01.09 | 2000 | 1AD-FTV | ADE150 | RN1471V | PN1837 | RN1352 | PN1835 | |
| 10.12~05.15 | 2000 | 1AD-FTV | ADE186 | RN1471V | PN1837 | RN1352 | PN1835 |
| 11.08~07.18 | 1600 | 1ZR-FAE | ZRT270L | RN1471V | PN1837 | RN2496 | PN1838 | |
| 11.08~07.18 | 1800 | 2ZR-FAE | ZRT271L | RN1471V | PN1837 | RN2496 | PN1838 | |
| 11.08~07.18 | 1800 | 2ZR-FAE | ZRT271R | RN1471V | PN1837 | RN2496 | PN1838 | |
| 10.08~02.15 | 2000 | 1ADFTV | ADT270L | RN1471V | PN1837 | RN2496 | PN1838 | |
| 11.08~05.15 | 2000 | 1ADFTV | ADT270R | RN1471V | PN1837 | RN2496 | PN1838 | |
| 11.08~07.18 | 2000 | 3ZR-FAE | ZRT272L | RN1471V | PN1837 | RN2496 | PN1838 | |
| 07.11~09.15 | 2000 | 3ZR-FAE | ZRT272W | RN1471V | PN1837 | RN2496 | PN1838 |
| 11.06~01.14 | 2000 | 1AD-FTV | ADE150L | RN1471V | PN1837 | RN1352 | PN1835 | |
| 07.07~01.14 | 2000 | 1AD-FTV | ADE150R | RN1471V | PN1837 | RN1352 | PN1835 |
| 04.14~10.17 | 1600 | 1WW | WAR20L | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 04.14~10.17 | 1600 | 1WW | WAR20R | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~10.17 | 1600 | 1ZRFAE | ZGR20L | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~10.17 | 1600 | 1ZRFAE | ZGR20R | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~10.17 | 1800 | 2ZRFAE | ZGR21L | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~10.17 | 1800 | 2ZRFAE | ZGR21R | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~03.15 | 2000 | 1ADFTV | AUR20L | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~03.15 | 2000 | 1ADFTV | AUR20R | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~03.15 | 2000 | 2ADFTV | AUR21L- | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
| 02.09~03.15 | 2000 | 2ADFTV | AUR21R-- | RN1471V | PN1837 | RN1671 | PN1842 | FN2405 |
