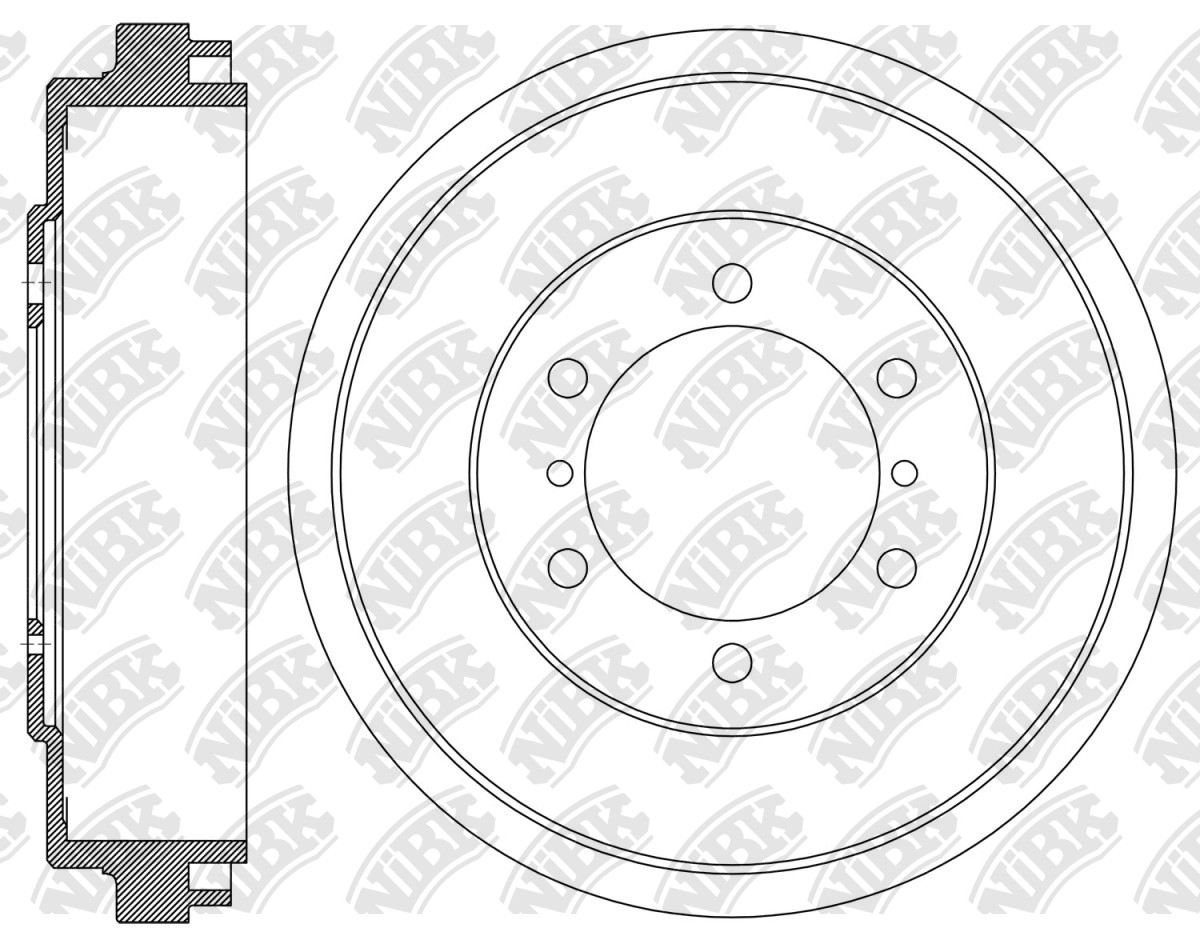

DRUM BRAKE » DN1252

Specification

Outter Ø
329
Num. of holes
6
Centering Diameter
108
Height
80.4
Pitch Circle Ø
139.7
Drum Ø
270
Structure Material
G3000
Hole Ø
14.5

Cross Reference

TOYOTA
42431-26120
TOYOTA
42431-26121
TOYOTA
42431-26122
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.95~05.02 3000 1KZ-TE KCH16W RN1304V PN1237 DN1252RN1633V PN1363FN2330 FN0567
07.99~05.02 3400 5VZ-FE VCH28K RN1304V PN1237 DN1252 FN2330
01.96~12.04 2500 2KD-FTV KLH18 DN1252 FN2330
08.01~11.11 2500 2KD-FTV KLH18 RN1304V PN1237 DN1252 FN2330
01.96~12.04 2500 2KD-FTV KLH28 DN1252 FN2330
08.01~08.10 2500 2KD-FTV KLH28 RN1304V PN1237 DN1252 FN2330
06.97~05.02 3000 5L LXH49V RN1304V PN1237 DN1252 PN1363FN2330

Exemption from liability: the catalog data is advisory and can be used for reference only
