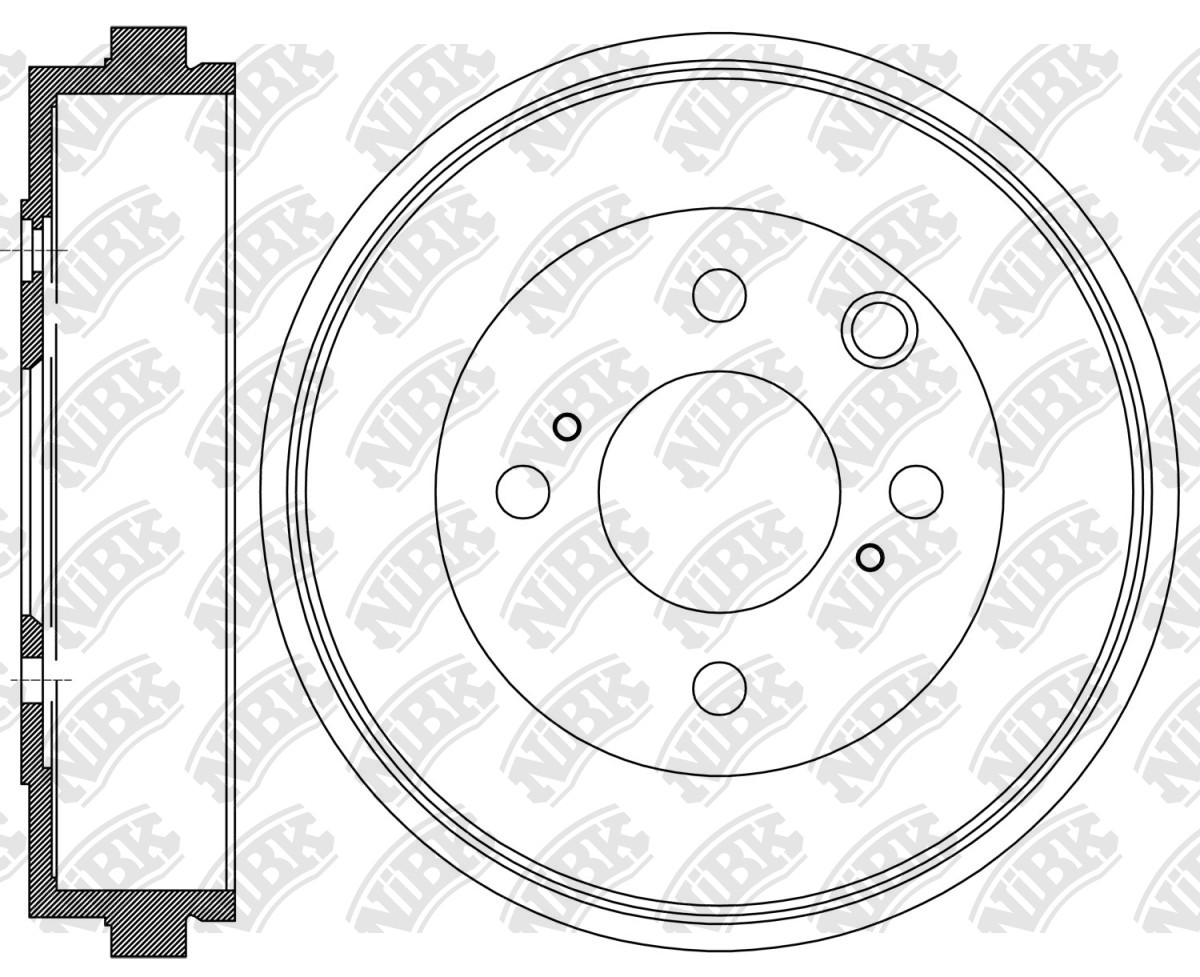

DRUM BRAKE » DN1294

Specification

Outter Ø
265
Num. of holes
4
Hole Ø
12.8
Centering Diameter
68
Height
60.3
Pitch Circle Ø
114.3
Drum Ø
228.7
Structure Material
G3000

Cross Reference

NISSAN
43206-CJ90A
NISSAN
43206-ET000
NISSAN
43206-ET00A
NISSAN
D3206-ET00JNW
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.07~03.14 1600 HR16DE L10S RN1995V PN2452 DN1294DN1293 FN1264FN1267
01.09~01.12 1800 MR18DE L10B RN1995V PN2452 DN1294DN1293 FN1267FN1264
01.12~10.14 1800 MR18DE L10BB RN1995V PN2452 DN1293DN1294 FN1264FN1267
09.06~01.09 2000 MR20DE AB61E US RN1424V PN2201 DN1294 FN1264
10.06~10.12 2000 MR20DE B16X RN1424V PN2201 DN1294 FN1264
02.07~12.17 1800 MR18DE SC11X RN1424V PN2452PN2201 RN1933DN1294 PN2466FN1264 FN0621
06.06~01.13 1800 MR18DE C11XCA HB RN1424V PN2201 DN1294 FN1264
06.06~06.11 1800 MR18DE SC11X US RN1424V PN2201 DN1294 FN1264

Exemption from liability: the catalog data is advisory and can be used for reference only
