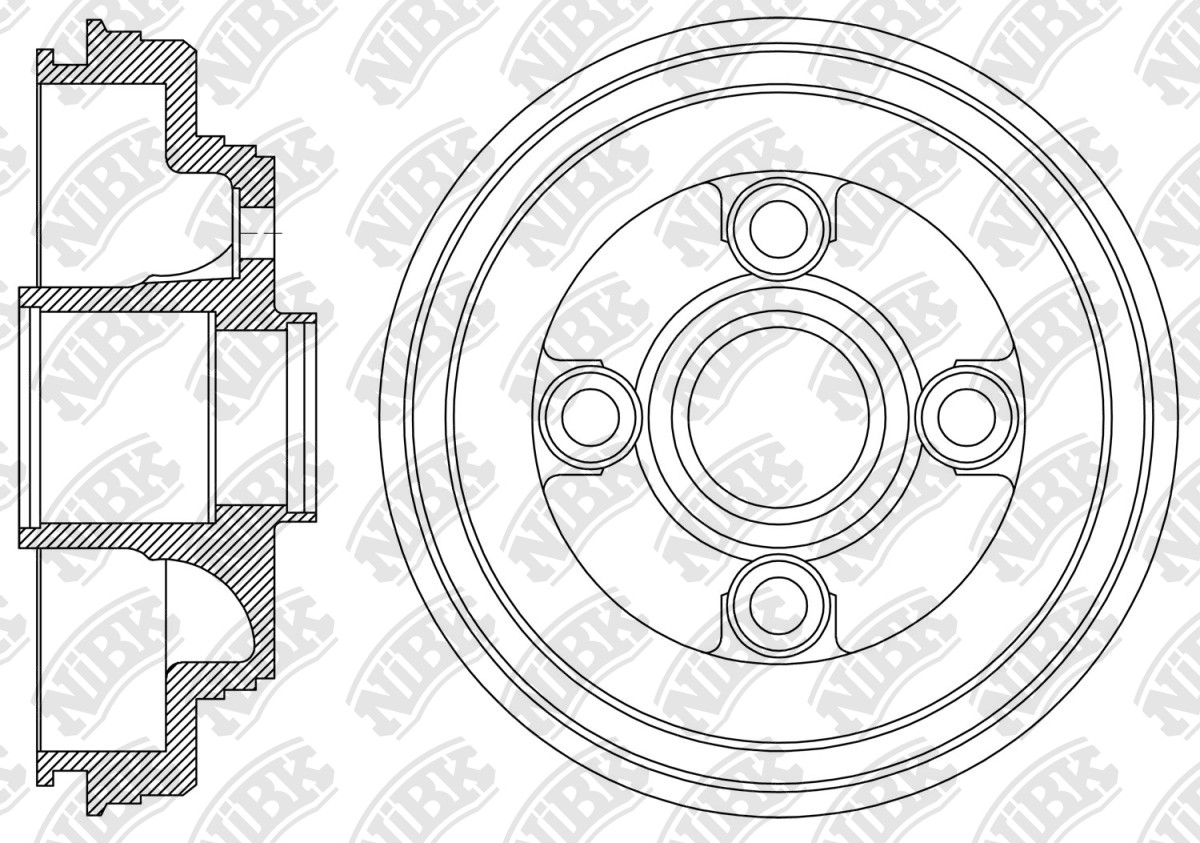

DRUM BRAKE » DN1333H

Specification

Outter Ø
213
Num. of holes
4
Hole Ø
14
Centering Diameter
55.8
Height
74.3
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

MITSUBISHI
3780A018
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
07.12~07.20 1000 3A90 A05A RN1812V PN6428 DN1333H FN6744
04.12~04.16 1200 3A92 A03A RN1834VRN1812V PN6428 DN1333HDN1334H FN1267FN6744
04.16~ 1200 3A92 A03A RN1812V PN6428 DN1333H FN6744
11.19~ 1200 3A92 A03A RN1812V PN6428 DN1333H FN6744
07.13~12.15 1200 3A92 A03A US RN1834VRN1812V PN6428 DN1334HDN1333H FN1267FN6744

Exemption from liability: the catalog data is advisory and can be used for reference only
