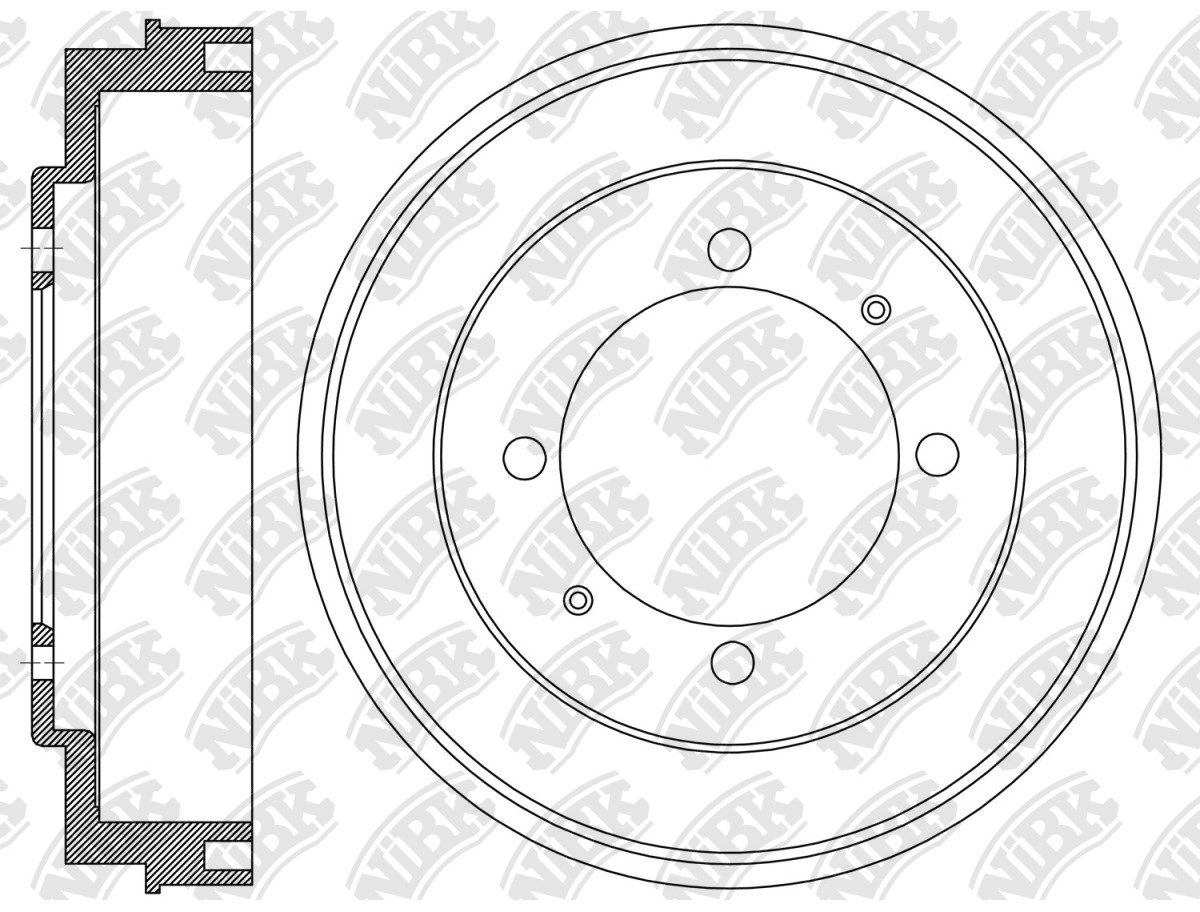

DRUM BRAKE » DN1341

Specification

Outter Ø
234
Num. of holes
4
Hole Ø
12.7
Centering Diameter
90
Height
60
Pitch Circle Ø
114.3
Drum Ø
203
Structure Material
G3000

Cross Reference

MITSUBISHI
MR334867
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.00~09.13 1600 4G18 CS3A RN1237VRN1222VRN1011V PN3462PN3469 DN1341RN1158DN1340 PN3502FN6729 FN6704
09.00~09.13 1600 4G18 CS3A GLX LHD RN1222V PN3462 DN1340DN1341 FN6729
12.04~08.07 2000 4G94 CS6A RN1011VRN1222V PN3462 DN1340DN1341 FN6729

Exemption from liability: the catalog data is advisory and can be used for reference only
