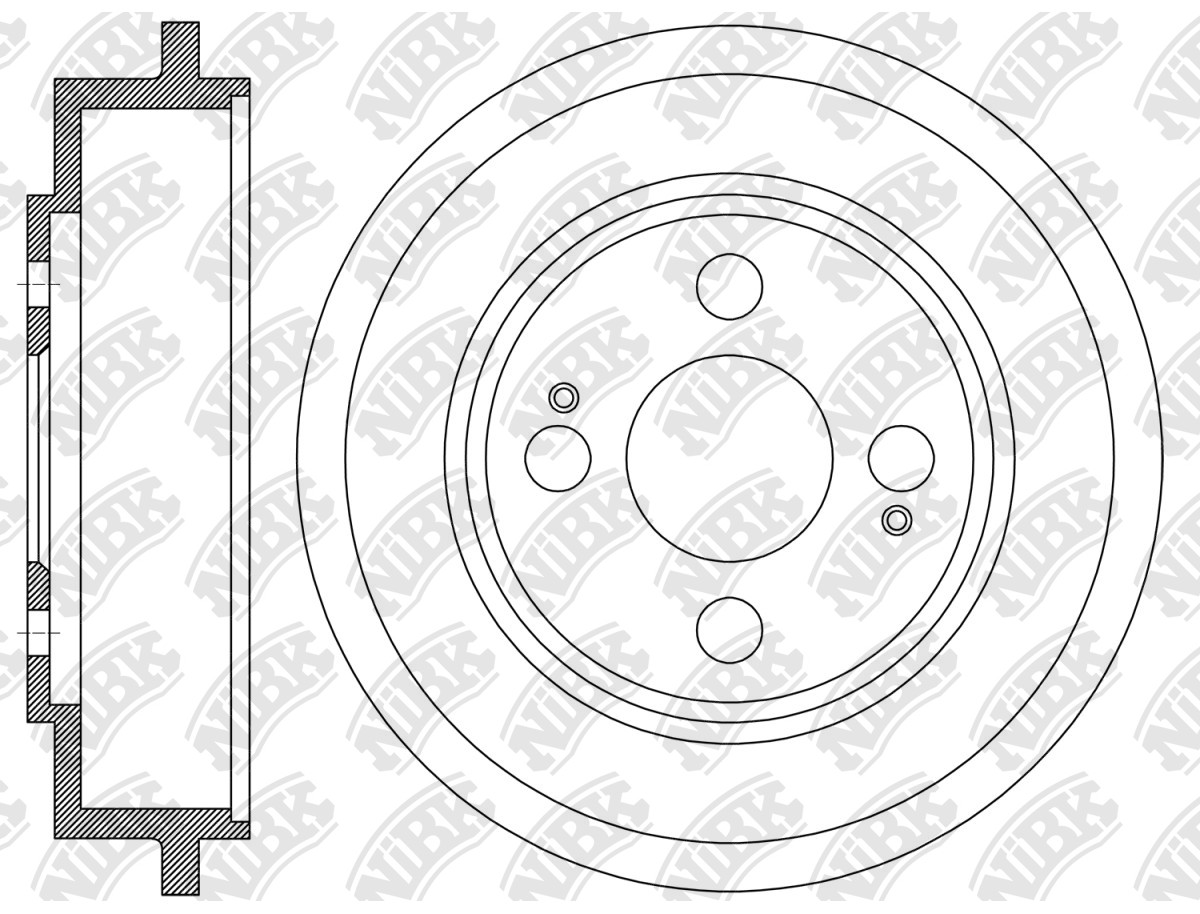

DRUM BRAKE » DN1377
Specification
Outter Ø
246
Num. of holes
4
Hole Ø
12.9
Centering Diameter
61.1
Height
63.6
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Cross Reference
HONDA
42610-S5A-000
HONDA
42610-TM8-A00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.08~09.13 | 1300 | L13Z1 | GM1 | RN1089V | PN8868 | RN1642DN1377 | FN28002PN8206 | |
| 09.08~09.11 | 1500 | L15A7 | GM2 LHD | RN1089V | PN8264 | DN1377 | FN28002 | |
| 09.11~01.14 | 1500 | L15A7 | GM2 LHD | RN1089V | PN8868 | DN1377 | FN28002 | |
| 09.08~09.11 | 1500 | L15A7 | GM2 RHD | RN1089V | PN8868PN8264 | DN1377RN1642 | FN28002PN8206FN5538 |
| 01.01~12.05 | 1500 | D15Y | ES8 RHD | RN1089V | PN8264 | DN1377 | FN5520 | |
| 01.01~12.05 | 1500 | D15Y3 | ES8 LHD | RN1089V | PN8264 | DN1377 | FN5520 | |
| 09.03~09.05 | 1600 | D16W7 | ES5 | RN1089V | PN8264 | DN1377 | FN5520PN8398 | |
| 01.01~09.03 | 1700 | D17A2 | ES1 RHD | RN1089V | PN8264 | RN2152DN1377 | PN8398FN5520 | |
| 09.03~12.05 | 1700 | D17A2 | ES1 RHD | RN1089V | PN8264 | DN1377RN2152 | FN5520PN8398 |
| 09.00~09.03 | 1700 | D17A# | EM2 US | RN1089V | PN8484 | DN1377 | FN5520 | |
| 09.03~09.05 | 1700 | D17A# | EM2 US | RN1089V | PN8484 | DN1377 | FN5520 |
| 09.00~09.05 | 1500 | D15B | ES1 JPN | RN1375V | PN8265 | DN1377 | FN5520 | |
| 09.00~09.05 | 1700 | D17A | ES3 | RN1089V | PN8264 | DN1377RN2152 | PN8398FN5520 | |
| 09.03~09.05 | 1700 | D17A | ET2 | RN1089V | PN8264 | DN1377 | FN5520 |
| 10.07~08.13 | 1300 | L13A | GE7 | RN1089V | PN8264PN1322 | DN1377 | FN28002 | |
| 10.10~09.13 | 1300 | LDA | GP1 | RN1089V | PN8868 | DN1377 | FN28002 | |
| 10.07~03.14 | 1400 | L13Z | GE6 LHD | RN1138V | PN8826 | DN1377 | FN5538 | |
| 10.07~08.13 | 1500 | L15A | GE8 | RN1089V | PN8264PN8868 | RN1642DN1377 | FN28002PN8206 | |
| 10.07~08.13 | 1500 | L15A | GE9 | RN1089V | PN8264 | DN1377 | FN28002 |
| 06.11~03.15 | 1300 | LDA | GP2 | RN1089V | PN8868 | DN1377 | FN28002 | |
| 06.11~03.15 | 1500 | L15A | GG7 | RN1089V | PN8868 | DN1377 | FN28002 | |
| 06.11~04.15 | 1500 | L15A | GG8 | RN1089V | PN8868 | DN1377 | FN28002 |
| 02.09~03.14 | 1300 | LDA | ZE2 JPN | RN1089V | PN8868 | DN1377 | FN28002 | |
| 01.10~03.14 | 1300 | LDA3 | ZE2 | RN1089V | PN8868 | RN2408DN1377 | PN8398FN28002 | |
| 11.11~04.14 | 1500 | LEA | ZE3 | RN1089V | PN8868 | DN1377 | FN28002 |
