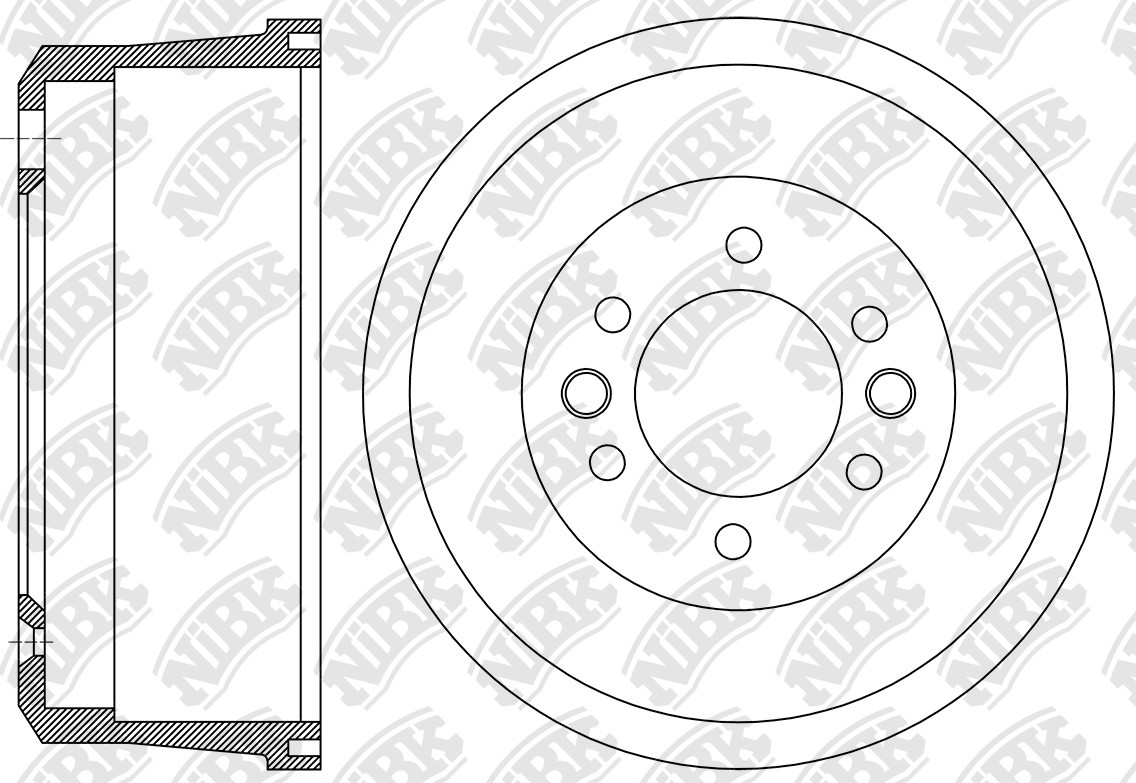

DRUM BRAKE » DN1505

Specification

Outter Ø
251
Num. of holes
6
Hole Ø
20
Centering Diameter
134
Height
102.1
Pitch Circle Ø
170
Drum Ø
220
Structure Material
G3000

Cross Reference

HYUNDAI
0K42A-26-251
KIA
0K42A-26-251A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.99~10.05 2700 J2 SD RN1613V PN0433 DN1519DN1505 FN3350
07.04~10.16 3000 JT PPU04 RN1623 PN13053 DN1505 FN0814
10.16~08.19 3000 JT PPU17 RN1623 PN13053 DN1505 FN0814
08.19~ 3000 JT PPU20 RN1623 PN13053 DN1505 FN0814

Exemption from liability: the catalog data is advisory and can be used for reference only
