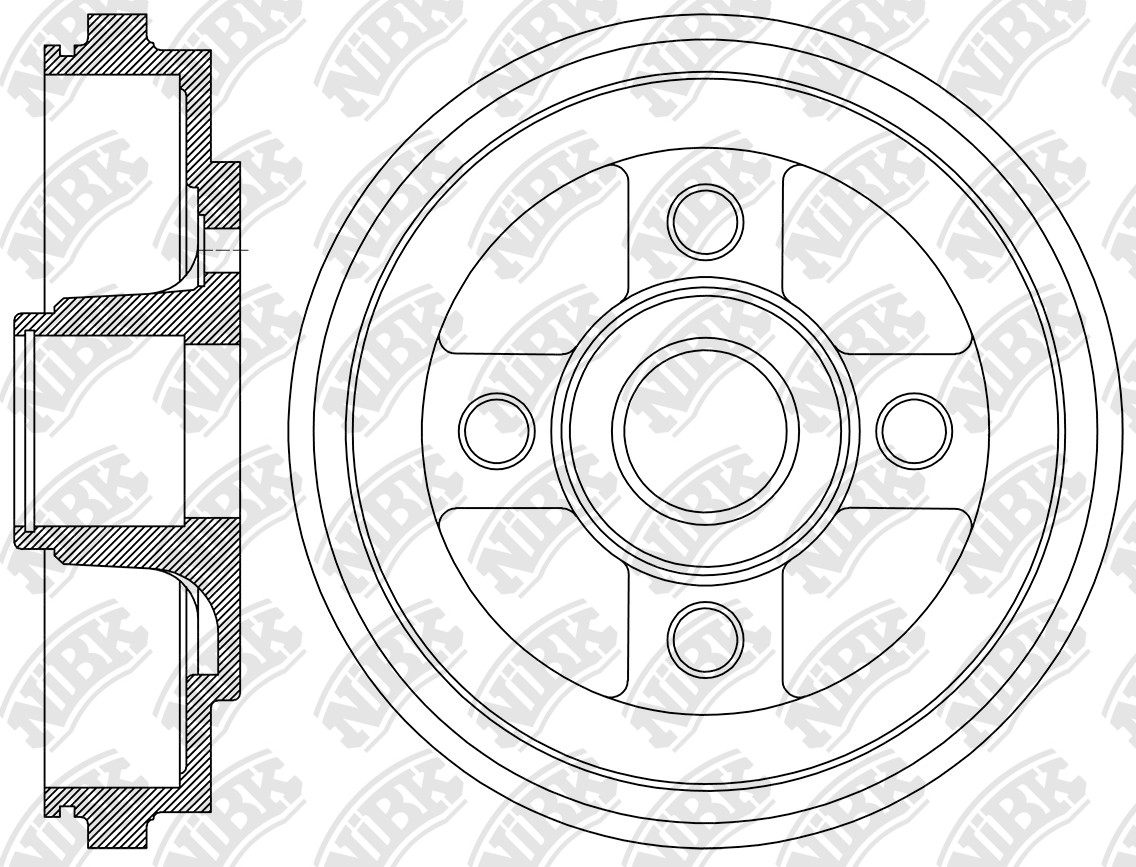

DRUM BRAKE » DN1568

Specification

Outter Ø
232
Num. of holes
4
Hole Ø
12
Centering Diameter
47-52.1
Height
83,3
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000

Cross Reference

GM
9210440
GM
9211082
OPEL
47 06 672
OPEL
47 06 673
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.00~03.08 1000 Z10XE RN1131 PN9805PN9807 DN1568DN1569DN1567 FN2386FN0762
09.03~03.08 1000 Z10XE PN9807 DN1569DN1567DN1568 FN0762
09.00~08.04 1200 Z12XE RN1131 PN9805PN9807 DN1569DN1567DN1568 FN0762FN2386
07.04~03.08 1200 Z12XEP PN9807 DN1569DN1567DN1568 FN0762
09.03~03.08 1300 Z13DT PN9807 DN1569DN1567DN1568 FN0762

Exemption from liability: the catalog data is advisory and can be used for reference only
