NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2248V

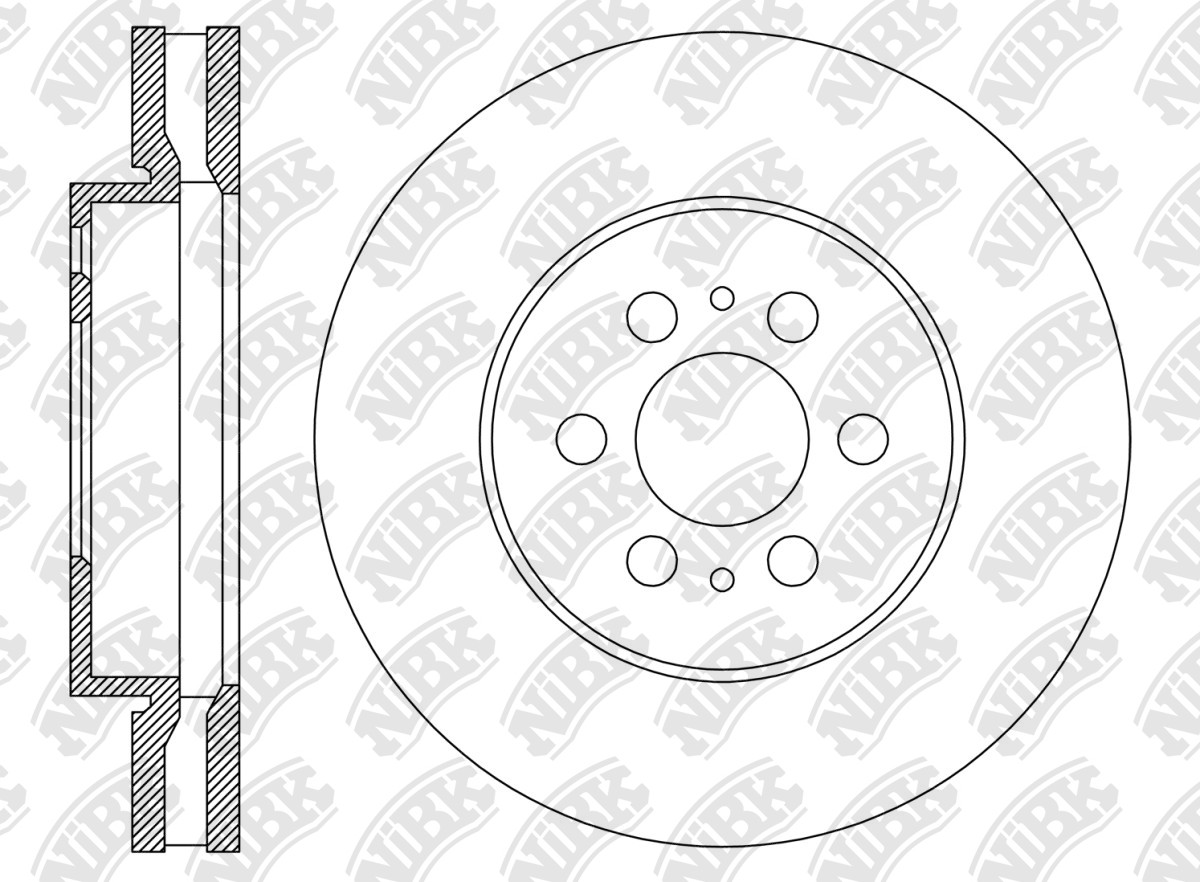

ROTOR DISC » RN2248V

Specification

Type

Vented

Outter Ø

296

Num. of holes

6

Hole Ø:

16.5

Disc Thickness (Max)

38

Disc Thickness (Min)

35

Height

61

Centering Diameter

77

Pitch Circle Ø

130

Drum Ø:

166.3

Front/Rear

Front

Structure Material

G3000

Cross Reference

TOYOTA

43512-26200

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » GranAce

12.19~

2800

1GD-FTV

GDH303W

RN2248V

PN1861

RN2249V

PN1862

TOYOTA » Hiace

02.19~	2800	1GD-FTV	GDH300R	RN2248V	PN1861	DN1116 RN2249V	PN1862 FN0809
02.19~	2800	1GD-FTV	GDH301L	RN2248V	PN1861	DN1116 RN2249V	PN1862 FN0809
12.19~	2800	1GD-FTV	GDH303	RN2248V	PN1861	RN2249V	FN0809 PN1862
07.19~	2800	1GD-FTV	GDH306R	RN2248V	PN1861	RN2249V	PN1862
02.19~	2800	1GD-FTV	GDH320R	RN2248V	PN1861	RN2249V DN1116	PN1862 FN0809
03.19~	2800	1GD-FTV	GDH322L	RN2248V	PN1861	RN2249V	PN1862
03.19~	2800	1GD-FTV	GDH322R	RN2248V	PN1861	RN2249V	PN1862
02.19~	3500	7GRFKS	GRH320L	RN2248V	PN1861	RN2249V DN1116	PN1862 FN0809
