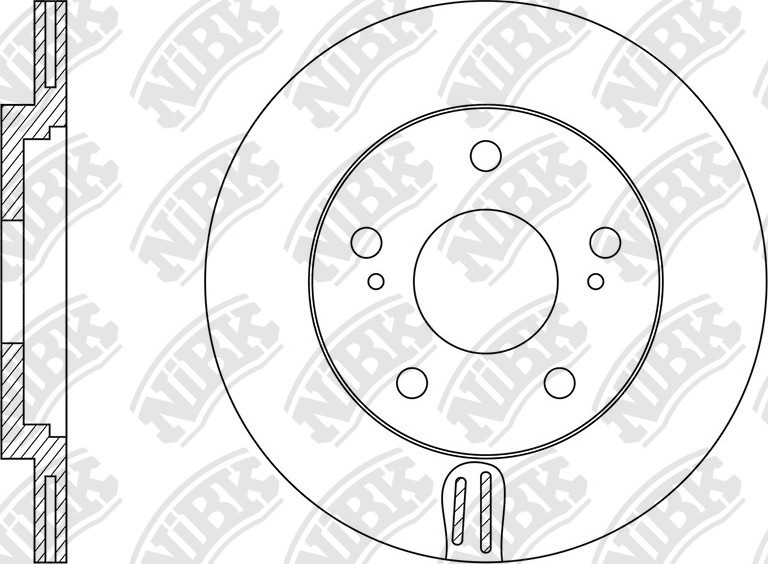

ROTOR DISC » RN1574V

Specification

Type
Vented
Outter Ø
324
Num. of holes
5
Disc Thickness (Max)
28
Centering Diameter
62
Front/Rear
Front
Height
49.2
Pitch Circle Ø
114.3
Drum Ø:
174
Disc Thickness (Min)
26
Structure Material
G3000

Cross Reference

TOYOTA
435120T010
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.09~12.16 2700 1AR-FE AGV10L RN1574V PN21003 RN1575 PN21002 FN0567
01.09~12.16 2700 1AR-FE AGV15L RN1574V PN21003 RN1575 PN21002 FN0567
11.08~12.16 3500 2GR-FE GGV10L RN1574V PN21003 RN1575 PN21002 FN0567
11.08~12.16 3500 2GR-FE GGV15L RN1574V PN21003 RN1575 PN21002 FN0567

Exemption from liability: the catalog data is advisory and can be used for reference only
