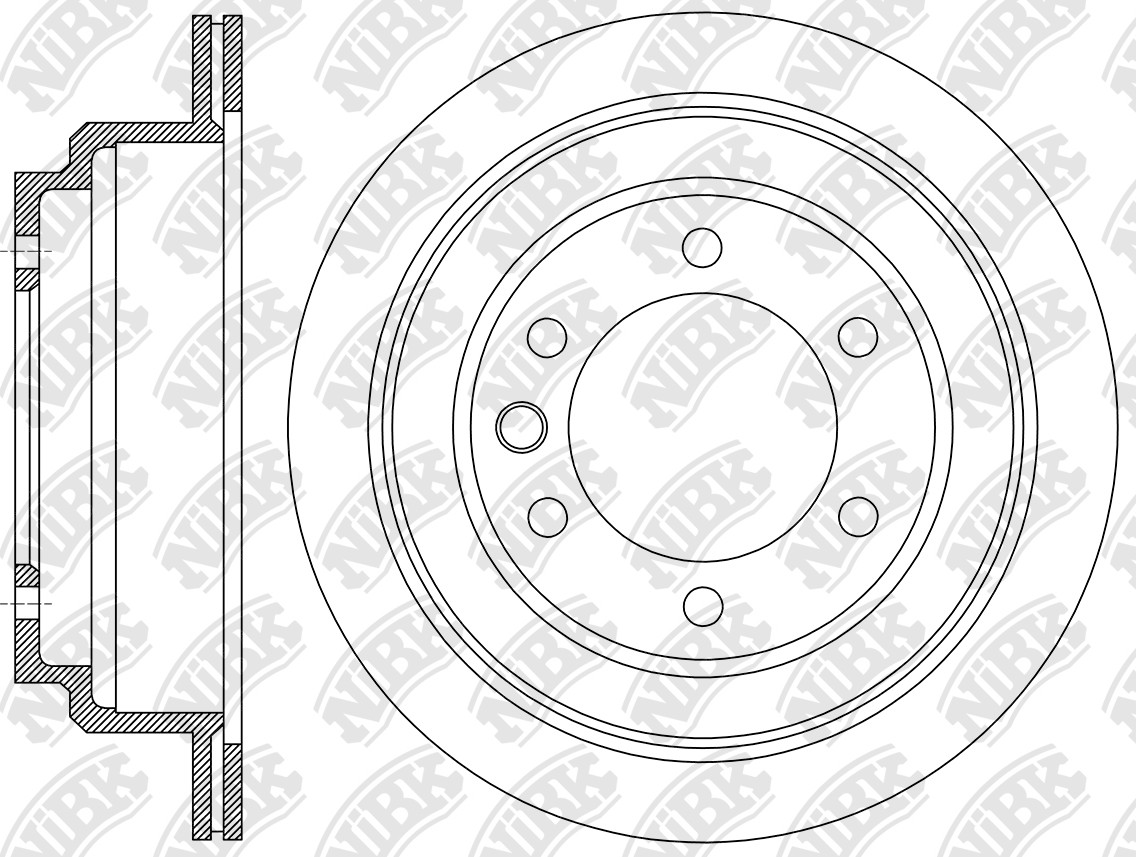

ROTOR DISC » RN2380V

Specification

Type
Vented
Outter Ø
330
Num. of holes
6
Hole Ø:
12.7
Disc Thickness (Max)
18
Disc Thickness (Min)
16
Height
89
Centering Diameter
111
Pitch Circle Ø
139.7
Front/Rear
Rear
Structure Material
G3000

Cross Reference

NISSAN
43206-068VA
NISSAN
43206-VC200
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.02~07.07 4800 TB48DE WFGY61 RN2379V PN2413 RN2380V PN2803 FN0816
05.01~ 4800 TB48DE Y61 RN2379V PN2413 RN2380V PN2803 FN0816
12.16~ 4800 TB48E GCY61 GL RN2379V PN2413 RN2380V PN2199 FN0816

Exemption from liability: the catalog data is advisory and can be used for reference only
