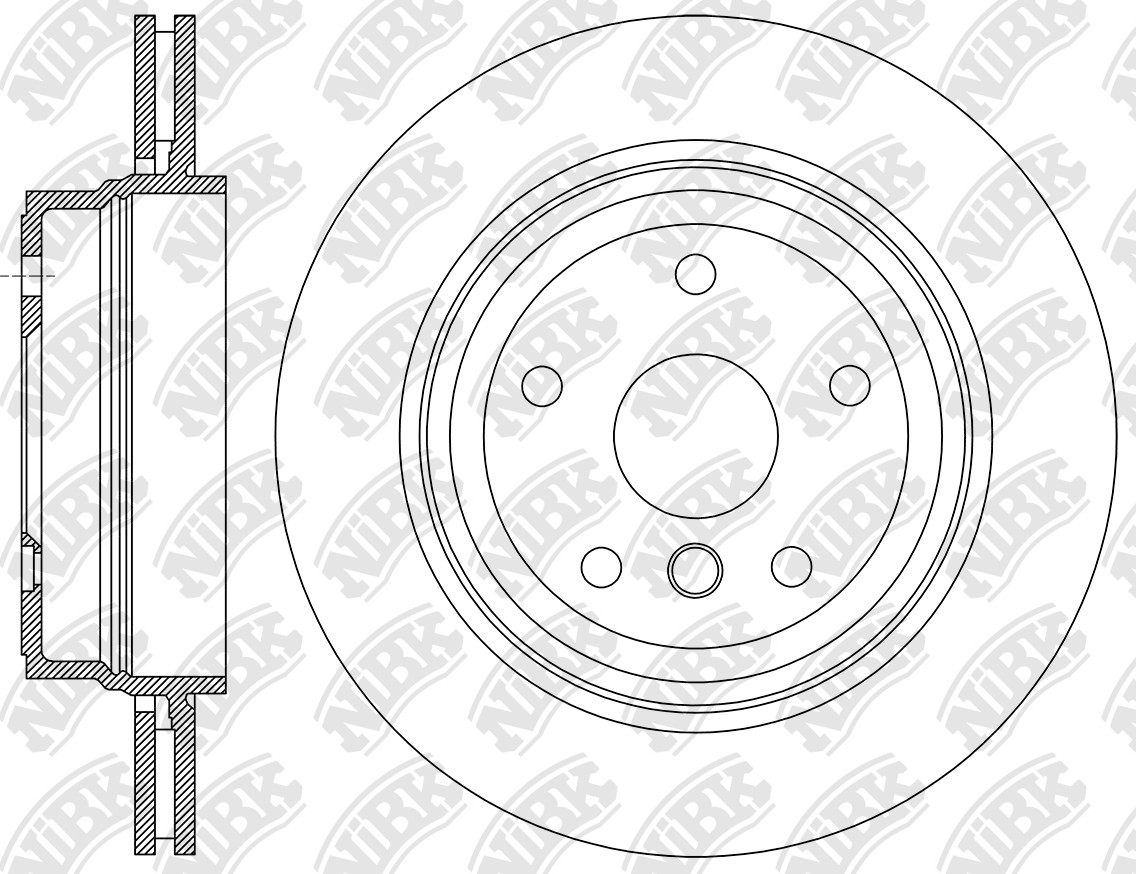

ROTOR DISC » RN2382V

Specification

Type
Vented
Outter Ø
320
Num. of holes
5
Hole Ø:
16.7
Disc Thickness (Max)
22
Disc Thickness (Min)
20.4
Height
79.6
Centering Diameter
75
Pitch Circle Ø
120
Front/Rear
Rear
Structure Material
G3000

Cross Reference

BMW
34 21 3 332 217
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.04~08.07 2000 M47D20 E83 RN2381V PN0027 RN2382V PN0225 FN0589
09.05~07.06 2000 N46B20B E83 RN2381V PN0027 RN2382V PN0225
03.03~07.06 2500 M54B25(256S5) E83 RN2381V PN0027 RN2382V PN0225 FN0589
08.06~08.10 2500 N52B25A E83 RN2381V PN0027 RN2382V PN0225 FN0589
01.04~08.05 3000 M57D30(306D2) E83 RN2381V PN0027 RN2382V PN0225 FN0589
09.05~08.10 3000 M57D30(306D3) E83 RN2381V PN0027 RN2382V PN0225 FN0589
09.03~07.06 3000 M54B30(306S3) E83 RN2381V PN0027 RN2382V PN0225 FN0589
08.06~08.10 3000 M57D30(306D5) E83 RN1154V PN0401 RN2382V PN0225 FN0589
08.06~08.10 3000 N52B30 E83 RN2381V PN0027 RN2382V PN0225 FN0589
09.08~12.11 1800 N47D20C E83 RN2381V PN0027 RN2382V PN0225 FN0589
09.06~08.10 2000 N47D20 E83 (MUE) RN2381V PN0027 RN2382V PN0225 FN0589
09.08~12.10 2000 N47D20A E83 RN2381V PN0027 RN2382V PN0225 FN0589
08.06~08.10 2000 N46B20B E83 (MUE) RN2381V PN0027 RN2382V PN0225

Exemption from liability: the catalog data is advisory and can be used for reference only
