NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2396

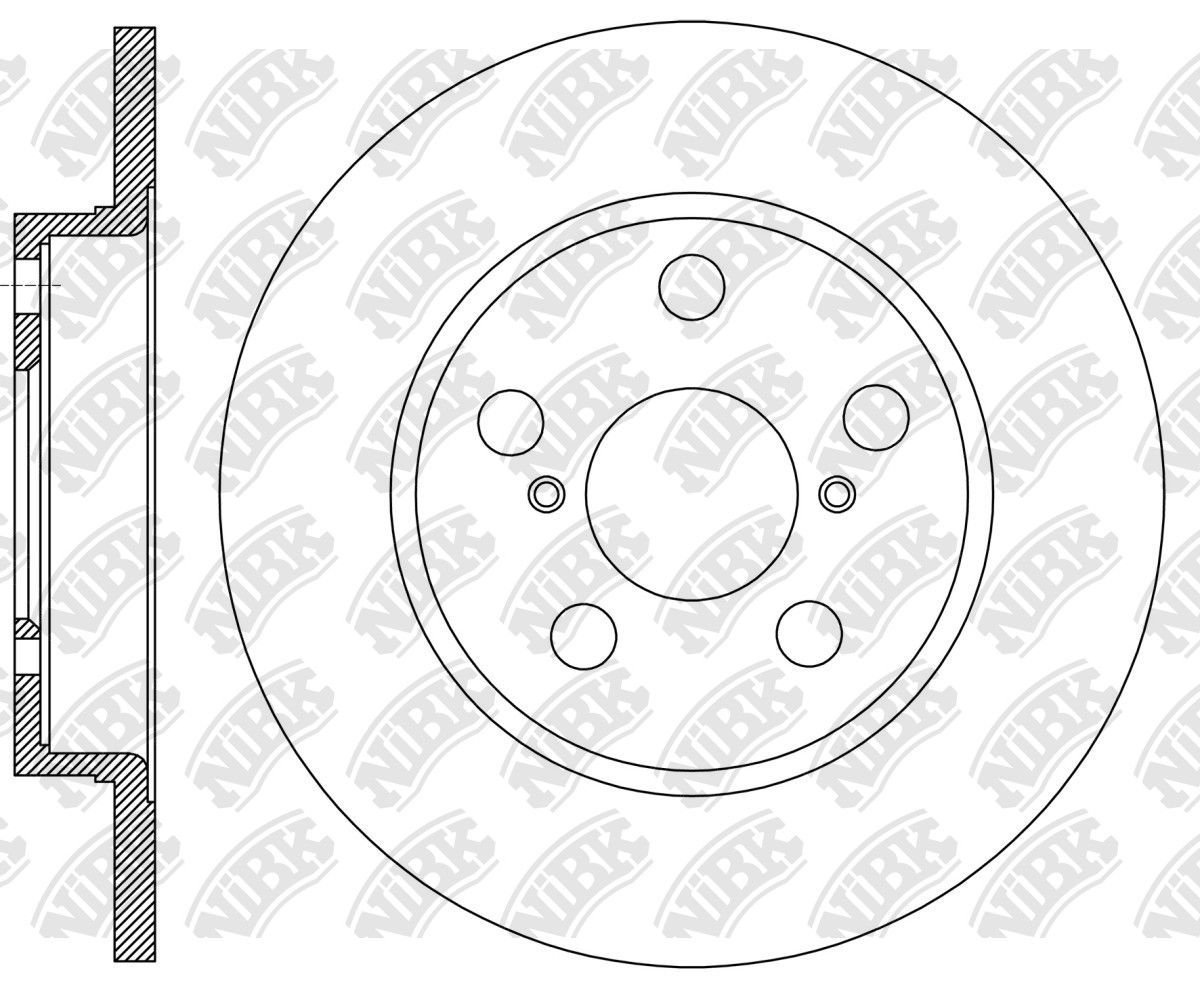

ROTOR DISC » RN2396

Specification

Type

Solid

Outter Ø

252

Num. of holes

5

Disc Thickness (Max)

9

Disc Thickness (Min)

8

Height

34.2

Centering Diameter

62

Pitch Circle Ø

114.3

Front/Rear

Rear

Structure Material

G3000

Cross Reference

SUZUKI

55611-68R00

SUZUKI

55611-68R00-000

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

SUZUKI » Swift V

01.17~	1400	K14C	A2L414 LHD	RN2395V	PN5562	RN2396	PN9808
09.17~	1400	K14C	ZC33S JPN	RN2395V	PN5562	RN2396	PN9808
01.20~	1400	K14D	A2L414-4 RHD	RN2395V	PN5562	RN2396	PN9808
