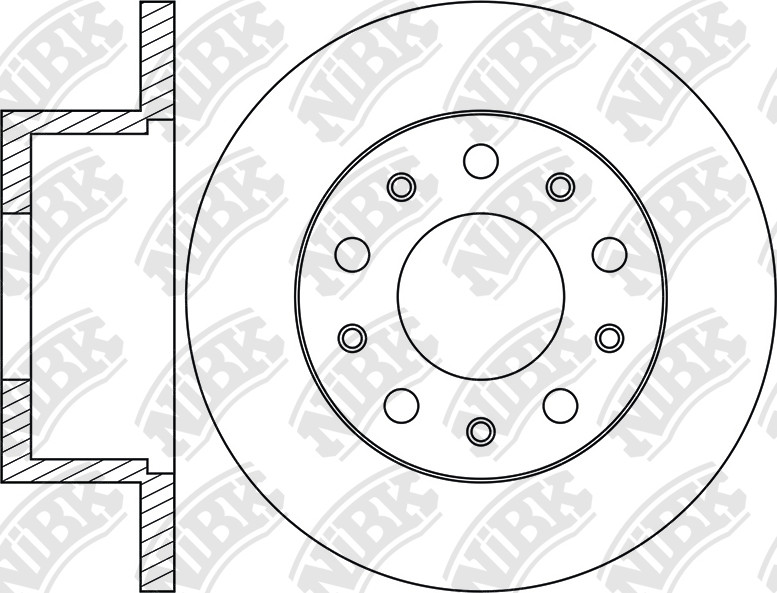

ROTOR DISC » RN1849
Specification
Type
Solid
Outter Ø
280
Num. of holes
5
Disc Thickness (Max)
16
Height
82
Centering Diameter
79
Pitch Circle Ø
130
Front/Rear
Rear
Disc Thickness (Min)
14.2
Drum Ø:
172
Structure Material
G3000
Hole Ø:
17.7
Cross Reference
CITROEN
424940
FIAT
1341047080
FIAT
4 683 3807
FIAT
51740248
FIAT
51749275
FIAT
51856411
FIAT
51856412
FIAT
71740117
Peugeot / Citroen
16 078 805 80
Peugeot / Citroen
4246.Z1
Peugeot / Citroen
4246.Z3
Peugeot / Citroen
4249 39
Peugeot / Citroen
4249 A2
Peugeot / Citroen
4249 K8
Peugeot / Citroen
4249.E7
Peugeot / Citroen
4249.K9
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.06~ | 3000 | 3.0 HDI 160 | YDD | RN1065V | PN0516W | RN1849 | PN0475 | FN0681 |
| 07.11~ | 3000 | 3.0 HDI 175 | YDP | RN1928V | PN0516W | RN1849 | PN0475WPN0475 | FN0681 |
| 01.14~ | 2300 | 3218607 | 4304429 | RN1928V | PN0516W | RN1849 | PN0475W | |
| 01.01~12.06 | 2800 | 8140.43 | 2E | RN1065V | PN0220W | RN1849DN1575 | PN0331FN0585 |
| 01.02~01.06 | 244 | RN1845VRN1065V | PN0220WPN0219W | DN1575RN1849 | FN0585PN0331 | |||
| 02.02~06.06 | 2000 | 244 | RN1065VRN1845V | PN0219WPN0220W | RN1849DN1575 | PN0331FN0585 | ||
| 02.02~06.06 | 2000 | RFL(XU10J2) | 244 | RN1845VRN1065V | PN0220WPN0219W | RN1849DN1575 | FN0585PN0331 | |
| 02.02~06.06 | 2000 | RHV(DW10UTD) | 244 | RN1065VRN1845V | PN0219WPN0220W | RN1849DN1575 | PN0331FN0585 | |
| 02.02~06.06 | 2200 | 4HY(DW12UTED) | 244 | RN1065VRN1845V | PN0219WPN0220W | RN1849DN1575 | PN0331FN0585 | |
| 02.02~06.06 | 2800 | 8140.43S | 244 | RN1065VRN1845V | PN0219WPN0220W | RN1849DN1575 | PN0331FN0585 |
