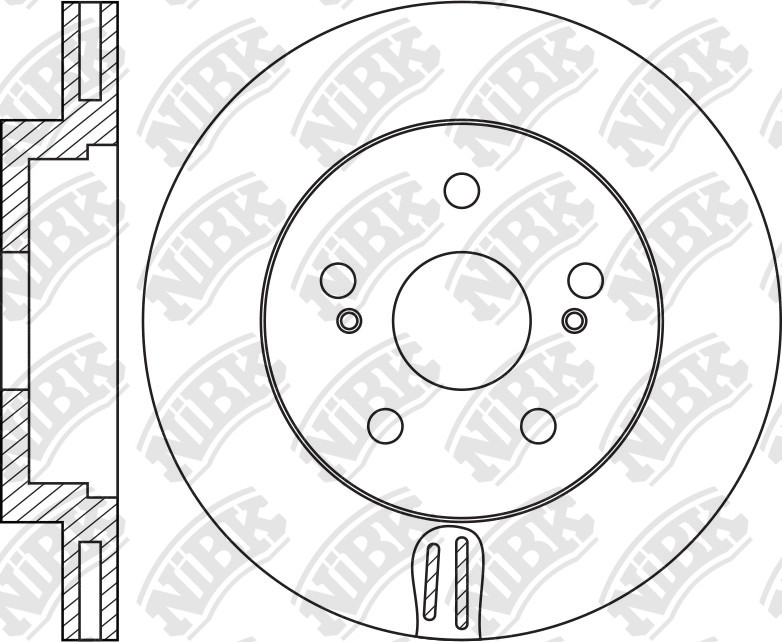

ROTOR DISC » RN2074V

Specification

Type
Vented
Outter Ø
255
Num. of holes
5
Disc Thickness (Max)
22
Disc Thickness (Min)
19
Height
46.5
Centering Diameter
55
Pitch Circle Ø
100
Drum Ø:
129
Structure Material
G3000

Cross Reference

TOYOTA
43512-20750
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.07~09.15 1500 1NZ-FE NZT260 RN2074VRN1576V PN1524PN1508 DN1208 FN2383

Exemption from liability: the catalog data is advisory and can be used for reference only
