NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2811

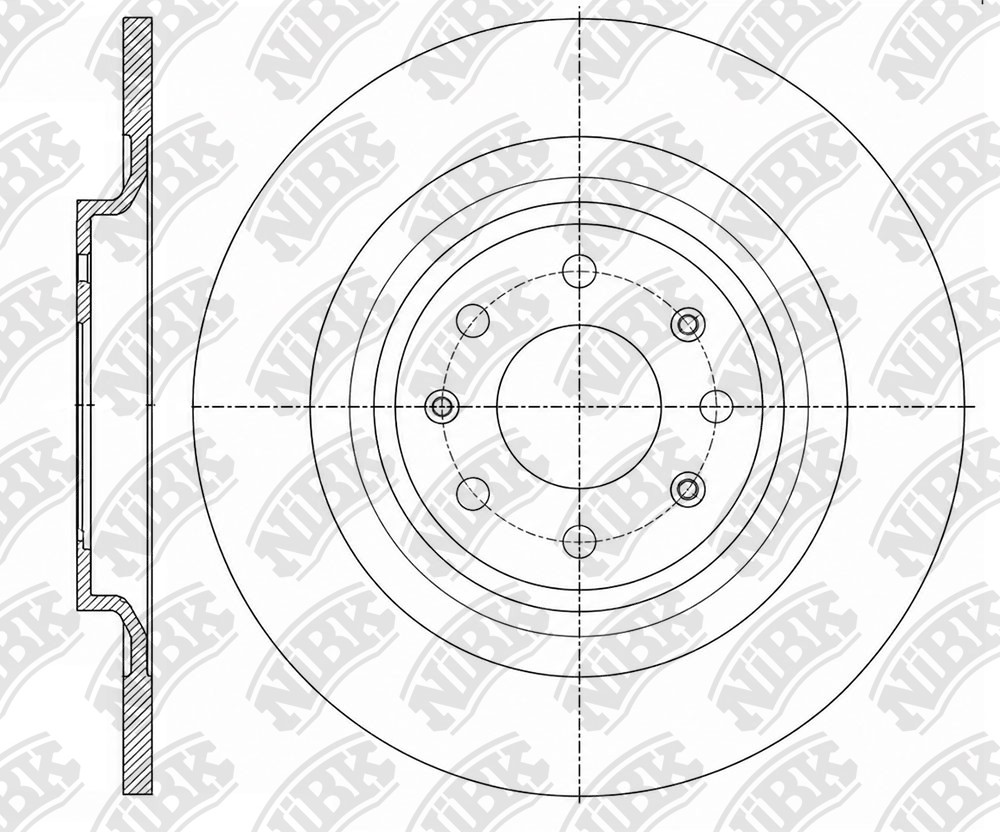

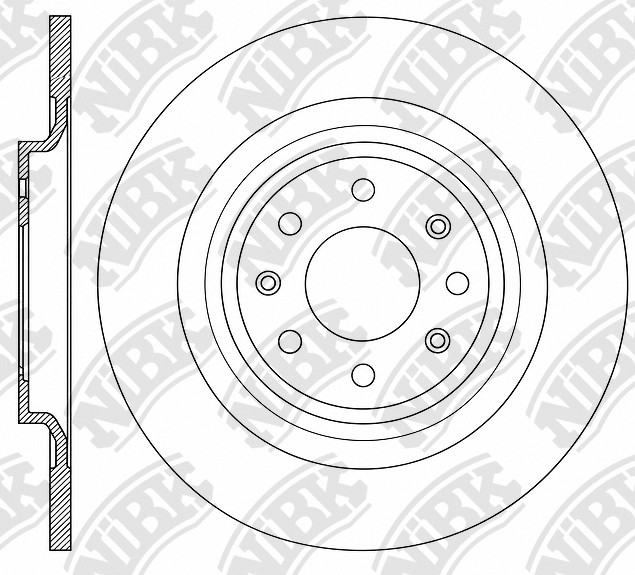

ROTOR DISC » RN2811

Image Not Available

Specification

Type

Solid

Outter Ø

326

Num. of holes

5

Hole Ø:

14.6

Disc Thickness (Max)

12

Disc Thickness (Min)

10

Height

32

Centering Diameter

69

Pitch Circle Ø

114.3

Drum Ø:

159.7

Front/Rear

Rear

Structure Material

G3000

Cross Reference

HYUNDAI / KIA

58411-T1000

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

GENESIS » GV70

12.20~01.25	2500	G4KR	R21 LHD GCC	RN2810V	PN6135	RN2811	PN6141
03.21~	2500	G4KR	R21 LHD US	RN2810V	PN6135 PN6158	RN2811	PN6141
03.21~	2500	G4KR	R21 RHD	RN2810V	PN6158 PN6135	RN2811	PN6141
03.21~	3500	G6DS	R21 LHD US		PN6158	RN2811	PN6141
