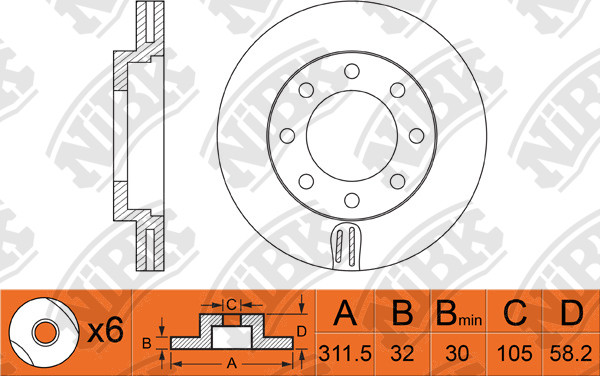

ROTOR DISC » RN1066V

Specification

Type
Vented
Disc Thickness (Max)
32
Num. of holes
6
Height
58.2
Centering Diameter
105
Front/Rear
Front
Pitch Circle Ø
139.7
Outter Ø
311.5
Drum Ø:
157
Disc Thickness (Min)
30
Structure Material
G3000

Cross Reference

TOYOTA
43512-60090
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.95~01.98 4500 1FZ-FE FZJ80 RN1066V PN1242 RN1157V PN1243 FN8905
01.90~01.98 4200 1H-Z HZJ81 RN1090VRN1066V PN1242 DN1222RN1157V FN2280PN1243 FN0642FN8905
01.90~01.98 4200 1HD-#T HDJ80L RN1066VRN1090V PN1242 RN1157VDN1223RN1831VDN1222 FN2280PN1243 FN0642
01.90~01.98 4200 1HD-#T HDJ80R RN1090VRN1066V PN1242 RN1831VDN1223DN1222RN1157V FN2280PN1243 FN0642
01.90~01.98 4200 1HD-T HDJ81V RN1066VRN1090V PN1242 RN1157V PN1243 FN0642FN8905
01.92~12.06 4500 1FZ-F# FZJ80L RN1066V PN1242 RN1157VDN1223 PN1243FN2280 FN8905
01.92~01.98 4500 1FZ-F# FZJ80R RN1066V PN1242 DN1223RN1157V FN2280PN1243 FN8905
01.90~01.98 4500 1FZ-FE FZJ80 RN1066V PN1242 RN1157VDN1223 PN1243FN2280 FN8905

Exemption from liability: the catalog data is advisory and can be used for reference only
