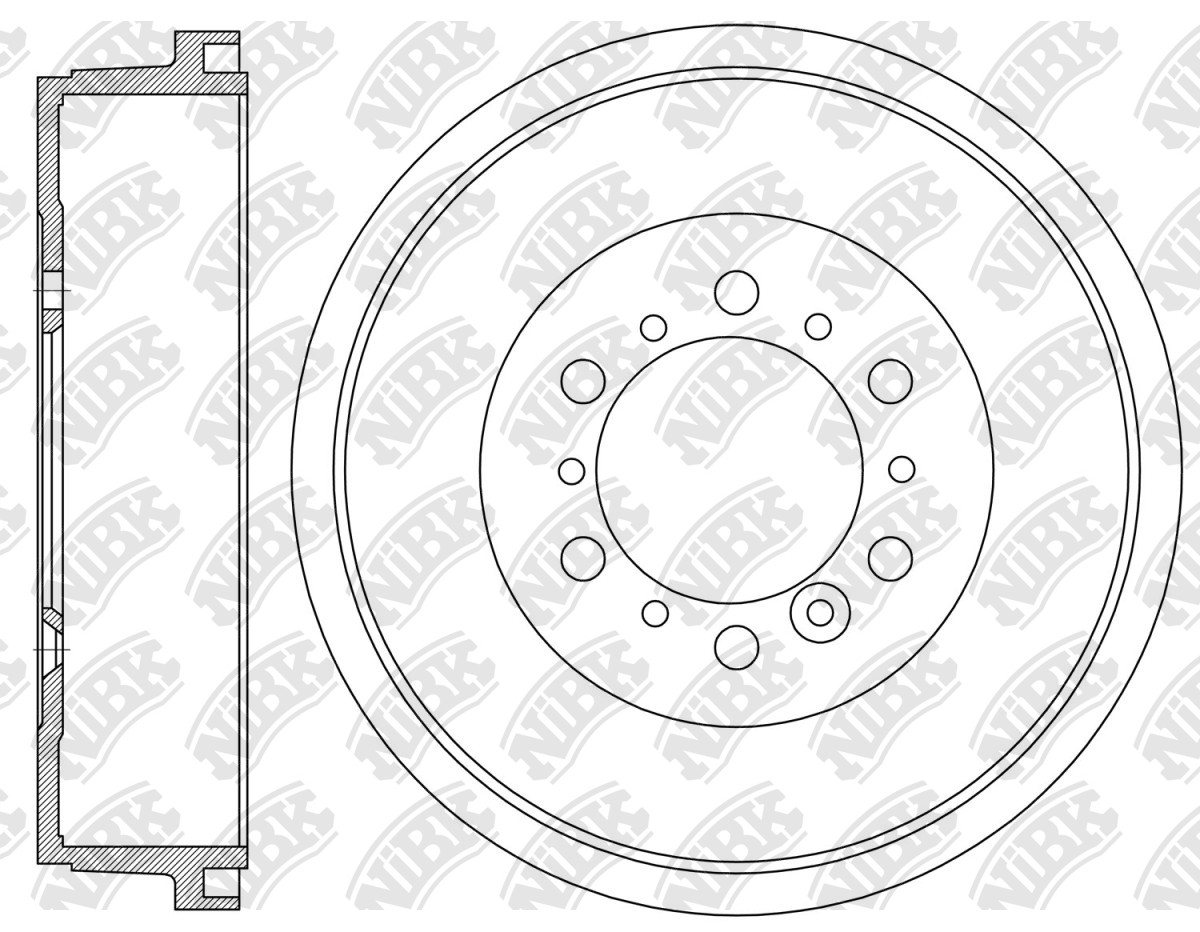

DRUM BRAKE » DN1222

Specification

Outter Ø
345
Num. of holes
6
Hole Ø
14.3
Centering Diameter
106
Height
80
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000

Cross Reference

TOYOTA
42431-60070
TOYOTA
42431-60150
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.90~01.94 3500 1PZ PZJ70V RN1139V PN1219PN1387 DN1222 FN2280
01.90~12.01 3500 1PZ PZJ75 RN1139V PN1219PN1387FN2296 DN1222 FN2280
04.90~01.94 3500 1PZ PZJ77V RN1139V PN1387PN1219 DN1222 FN2280
01.84~12.92 4000 3F FJ75 RN1139V PN1387FN2296 DN1222 FN2280
01.90~09.92 4000 3F-E FJ80L RN1090V PN1242 RN1831VDN1222 FN2280PN1243 FN0642
01.90~09.92 4000 3F-E FJ80R RN1090V PN1242 RN1831VDN1222 FN2280PN1243 FN0642
01.94~08.99 4200 1H-Z HZJ70 RN1139V PN1387PN1219 DN1222 FN2280
01.94~08.99 4200 1H-Z HZJ70V RN1139V PN1219PN1387 DN1222 FN2280
01.90~12.01 4200 1H-Z HZJ73V RN1139V PN1387PN1219 RN1157VDN1222 PN1243FN2280 FN0642
01.90~01.07 4200 1H-Z HZJ75 RN1139V PN1219PN1387 DN1222 FN2280
01.90~08.99 4200 1H-Z HZJ75LP RN1139V PN1219PN1387FN2296 DN1222 FN2280
01.90~01.04 4200 1H-Z HZJ75LV RN1139V PN1219PN1387FN2296 DN1222 FN2280
01.95~08.99 4200 1H-Z HZJ77V RN1139V PN1387PN1219 DN1222 FN2280
01.90~01.98 4200 1H-Z HZJ80L RN1090V PN1242 DN1223RN1831VDN1222 FN2280PN1243 FN0642
01.90~01.01 4200 1H-Z HZJ80R RN1090V PN1242 DN1222RN1157VRN1831VDN1223 PN1243FN2280 FN0642FN8905
01.90~01.98 4200 1H-Z HZJ81 RN1090VRN1066V PN1242 DN1222RN1157V FN2280PN1243 FN8905FN0642
01.90~08.98 4200 1HD-#T HDJ80L RN1066VRN1090V PN1242 DN1223RN1157VRN1831VDN1222 FN2280PN1243 FN0642
01.90~03.01 4200 1HD-#T HDJ80R RN1066VRN1090V PN1242 RN1831VDN1223DN1222RN1157V FN2280PN1243 FN0642
01.90~01.94 3500 1PZ PZJ70 RN1139V PN1219PN1387 DN1222 FN2280

Exemption from liability: the catalog data is advisory and can be used for reference only
