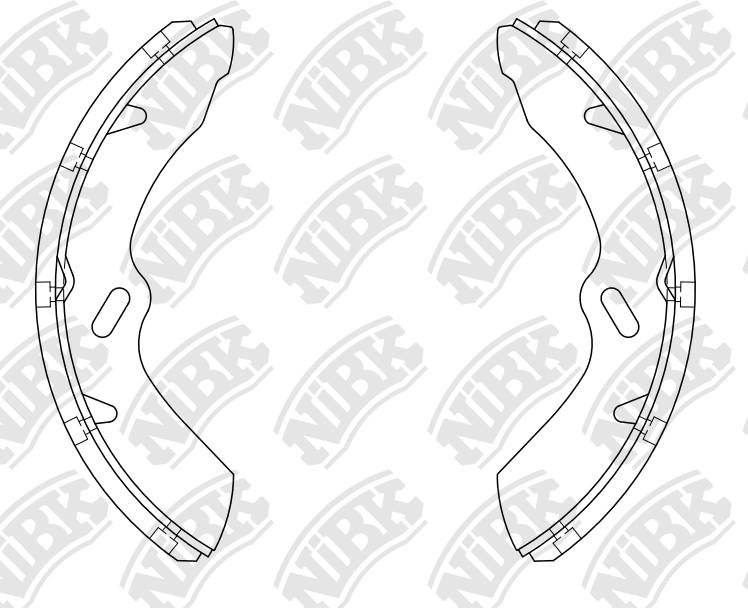

BRAKE SHOE » FN0635

Specification

Radius
160
Width
85
Thickness
9.6/13
Pcs In Set
4

Cross Reference

HYUNDAI
58144-45A60
HYUNDAI
58305-45A30
HYUNDAI
58305-45A41
HYUNDAI
58305-45A63
HYUNDAI / KIA
58305-45A20
HYUNDAI / KIA
58305-5KA10
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
03.98~01.08 3300 D4AL HD17LP BUS DOM RN1629V PN0417 FN11003FN0635 FN6600
09.04~ 3900 D4DD HD65 PN0417 FN0635FN11003
09.04~ 3900 D4DD HD72 PN0417 FN0635
09.04~ 3900 D4DD HD78 PN0417 FN0635
01.04~01.10 3900 D4DC11 HD17CP FN0679FN0635 DN1483 FN0635FN0679 FN6600
01.10~ 3600 D4AF CARGO HIGH FN0635 DN1483 FN0635 FN6600
09.04~04.10 3600 D4AF DUMP FN0635 FN0635FN11003 FN6600
01.04~01.09 3900 D4DB FGA17 RHD PN0417FN0635 FN0635 FN4443
01.04~01.09 3900 D4DC11 CGK17 LHD FN0635 FN0635 FN6600
01.98~01.05 3900 D4DC11 FGA17 RHD FN0635 DN1520 FN0635 FN6600
01.04~01.09 3900 D4DC11 FGA17 RHD PN0417FN0635 FN0635 FN6600
01.98~01.02 DV6A16 H0AA98 3.5T PN0417 DN1520 FN0635
02.04~ 3900 D4DD HD65 FN0635
01.04~01.10 3900 D4DC11(4D34) HD65 FN0635 FN0635 FN6600

Exemption from liability: the catalog data is advisory and can be used for reference only
