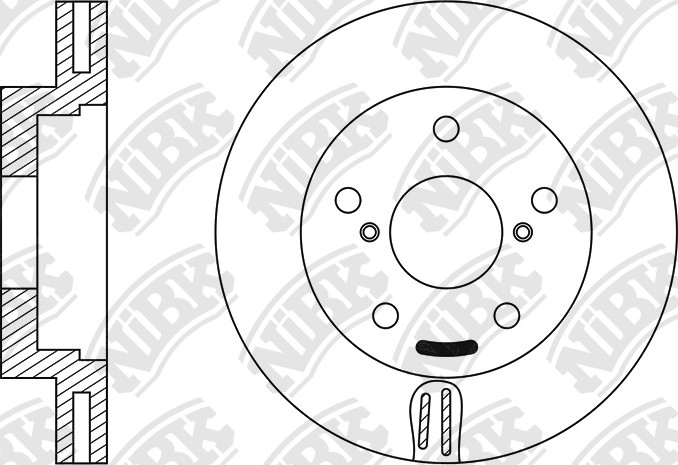

ROTOR DISC » RN1340V
Specification
Type
Vented
Disc Thickness (Max)
28
Num. of holes
5
Height
58.5
Centering Diameter
62
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
257
Drum Ø:
141
Disc Thickness (Min)
26
Structure Material
G3000
Cross Reference
TOYOTA
43512-0K010
TOYOTA
43512-0K020
TOYOTA
43512-0K030
TOYOTA
43512-0K051
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.05~12.15 | 2000 | 1TR-FE | TGN15L | RN1340VRN1627V | PN1802PN1801 | DN1203 | FN2335 | |
| 10.05~09.16 | 2500 | 2KD-FTV | KUN15L | RN1340VRN1627V | PN1831PN1802PN1801 | DN1203 | FN2335 | |
| 08.04~09.08 | 2500 | 2KD-FTV | KUN15R | RN1340VRN1942V | PN1801PN1831 | DN1203 | FN2335 | |
| 10.05~04.15 | 2700 | 2TR-FE | TGN11L | RN1627VRN1340V | PN1802PN1801 | DN1203 | FN2335 | |
| 08.08~07.11 | 2700 | 2TR-FE | TGN16 | RN1340VRN1627V | PN1802PN1801 | DN1203 | FN2335 | |
| 08.05~ | 3000 | 1KD-FTV | KUN16 | RN1340V | PN1482 | |||
| 08.04~08.08 | 3000 | 1KD-FTV | KUN16R | RN1627VRN1340V | PN1801PN1802 | DN1203 | FN2335 | |
| 08.04~10.08 | 3000 | 5L-E | LAN15L | RN1340VRN1942V | PN1831 | DN1203 | FN2335 | |
| 08.04~07.11 | 4000 | 1GR-FE | GGN15R | RN1340V | PN1801 | DN1203 | FN2335 |
| 02.03~07.11 | 2000 | 1TR-FE | TGN40L | RN1340V | PN1801 | DN1204 | FN2335 | |
| 08.04~09.13 | 2000 | 1TR-FE | TGN40R | RN1627VRN1340V | PN1802PN1831PN1801 | DN1204 | FN2335 | |
| 01.05~03.16 | 2500 | 2KD-FTV | KUN40L | RN1340V | PN1801 | DN1204 | FN2335 | |
| 08.04~03.16 | 2500 | 2KD-FTV | KUN40R | RN1340VRN1942V | PN1831 | DN1204 | FN2335 | |
| 08.04~07.11 | 2500 | 2KD-FTV | TGN40 | RN1340V | PN1831 | FN2335 | ||
| 08.04~07.11 | 2700 | 2TR-FE | TGN40 | RN1340V | PN1801 | FN2335 | ||
| 08.04~07.11 | 2700 | 2TR-FE | TGN41R | RN1340V | PN1801 | FN2335 |
