DRUM BRAKE » DN1278

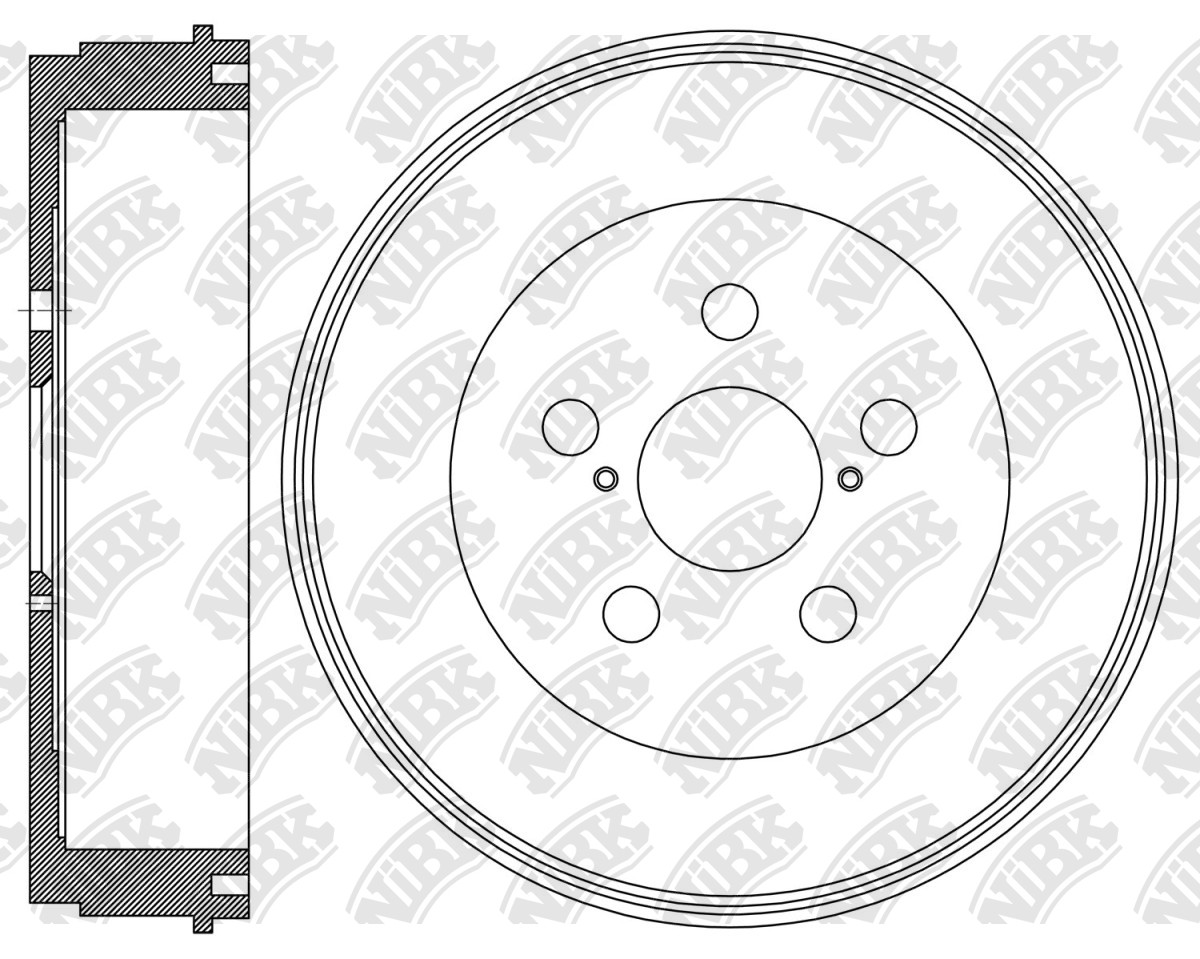

DN1278

Specification

Outter Ø
306
Num. of holes
5
Hole Ø
14.7
Centering Diameter
62
Height
73.7
Pitch Circle Ø
114.3
Drum Ø
253.9
Structure Material
G3000

Cross Reference

TOYOTA
42431-08020
TOYOTA
42431-08021
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Sienna

01.03~12.06 3300 3MZ-FE MCL20L RN1162V PN1480 DN1278RN1229 PN1449FN2378 FN0567
12.06~01.10 3500 2GR-FE GSL20 RN1162V PN1480 RN1229DN1278 FN2378PN1449 FN0567
12.06~01.10 3500 2GR-FE GSL20L RN1162V PN1480 DN1278RN1229 PN1449FN2378 FN0567
