ROTOR DISC » RN1162V

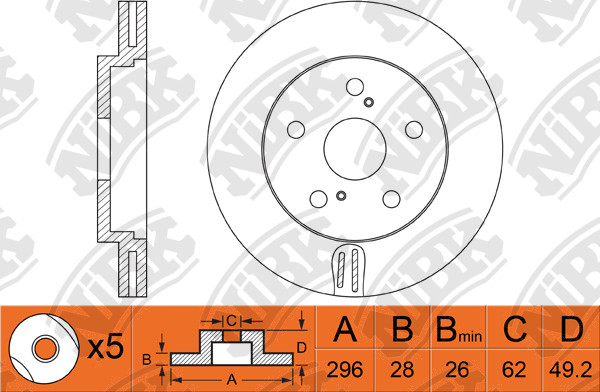

Specification

Type
Vented
Outter Ø
296
Num. of holes
5
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
49.2
Centering Diameter
62
Pitch Circle Ø
114.3
Drum Ø:
156
Structure Material
G3000

Cross Reference

OEM
4351228180
TOYOTA
43512-08030
TOYOTA
43512-08040
TOYOTA
43512-28181
TOYOTA
43512-33100
TOYOTA
43512-48010
TOYOTA
43512-48011
TOYOTA
43512-48030
TOYOTA
43512-48060
TOYOTA
43512-58010
TOYOTA
43512-58011
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
07.01~03.06 3000 1MZ-FE MCV30R RN1162V PN1480PN1479 RN1223 PN1458 FN0633
07.03~03.06 3300 3MZ-FE MCV31 RN1162V PN1479PN1480 RN1486 PN1458 FN0633
01.98~02.03 3000 1MZ-FE MCU10 RN1162V PN1481 RN1223 PN1321 FN0633
05.02~05.08 2400 2AZ-FE ANH10W RN1162V PN1480 RN1229 PN1449 FN0567
05.02~05.08 2400 2AZ-FE ANH15W RN1162V PN1480 RN1229 PN1449 FN0567
05.02~05.08 2400 2AZ-FXE ATH10W RN1162V PN1480 RN1229 PN1449
05.02~01.08 3000 1MZ-FE MNH10 RN1162V PN1480 RN1229 PN1449 FN0567
05.02~04.08 3000 1MZ-FE MNH15W RN1162V PN1480 RN1229 PN1449 FN0567
08.01~11.06 3000 1MZ-FE MCV30L RN1162V PN1479 RN1223 PN1458 FN0633
09.03~02.06 3300 3MZ-FE MCV31L RN1162V PN1479 RN1486 PN1458
02.00~01.06 2400 2AZ-FE ACR30W RN1162VRN1009V PN1480PN1448PN1784 RN1229 PN1449 FN0567
12.99~01.06 3000 1MZ-FE MCR30W RN1162V PN1480 RN1229 PN1449 FN0567
01.00~01.06 2400 2AZ-FE ACR30 RN1162V PN1448PN1480 RN1229 PN1449
01.99~01.06 2400 2AZ-FE ACR40W RN1009VRN1162V PN1480PN1784PN1448 RN1229 PN1449 FN0567
12.97~11.07 2200 5S-FE SXU10W RN1162V PN1481PN1401 RN1223 PN1321 FN0633
12.97~11.00 2200 5S-FE SXU15W RN1162V PN1481PN1401 RN1251 PN1321 FN0633
12.97~02.03 2400 2AZ-FE ACU10W RN1162V PN1401PN1481 RN1223 PN1321 FN0633
11.00~02.03 2400 2AZ-FE ACU15W RN1162V PN1401PN1481 RN1251 PN1321
12.97~02.03 3000 1MZ-FE MCU10W RN1162V PN1481PN1401 RN1223 PN1321PN1458 FN0633
01.97~02.03 3000 1MZ-FE MCU15W RN1162V PN1401PN1481 RN1251 PN1321 FN0633
01.00~01.07 3000 1MZ-FE MCU20L RN1162V PN1457 RN1223 PN1458 FN0633
11.00~05.07 3000 1MZ-FE MCU20W RN1162V PN1457 RN1255 PN1498PN1458 FN0633FN0567
01.00~08.08 3000 1MZ-FE MCU25W RN1162V PN1457 RN1251RN1255 PN1498PN1458
01.00~01.06 2400 2AZ-FE ACR30L RN1162VRN1009V PN1480PN1448PN1784 RN1229 PN1449 FN0567
02.00~01.06 2400 2AZ-FE ACR30R RN1009VRN1162V PN1448PN1784PN1480 RN1229 PN1449 FN0567
01.03~12.06 3300 3MZ-FE MCL20L RN1162V PN1480 RN1229DN1278 PN1449FN2378 FN0567
01.03~12.06 3300 3MZ-FE MCL25 RN1162V PN1480 RN1229 PN1449 FN0567
12.06~01.10 3500 2GR-FE GSL20 RN1162V PN1480 RN1229DN1278 PN1449FN2378 FN0567
12.06~01.10 3500 2GR-FE GSL20L RN1162V PN1480 RN1229DN1278 FN2378PN1449 FN0567
12.06~01.10 3500 2GR-FE GSL25L RN1162V PN1480 RN1229 PN1449 FN0567
07.03~08.08 2400 2AZ-FE ACV30L RN1162V PN1480 RN1486 PN0427 FN0633
07.03~12.08 3300 3MZ-FE MCV31L RN1162V PN1479PN1480 RN1486 PN0427PN1458 FN0633
07.01~02.06 3000 1MZ-FE MCV30 RN1162V PN1479PN1480 RN1486 PN1458

Exemption from liability: the catalog data is advisory and can be used for reference only
