ROTOR DISC » RN1951V

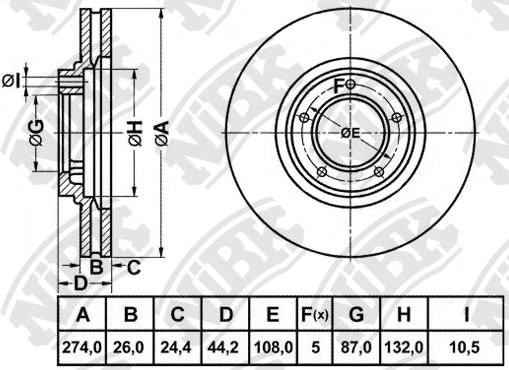

Specification
Type
Vented
Outter Ø
274
Num. of holes
5
Disc Thickness (Max)
26
Height
44.3
Centering Diameter
87
Pitch Circle Ø
108
Drum Ø:
132
Disc Thickness (Min)
24.4
Structure Material
G3000
Front/Rear
Front
Hole Ø:
10.5
Cross Reference
HI-Q
SD1030
HYUNDAI
51712-4F000
HYUNDAI
58129-4A200
HYUNDAI / KIA
517124F100
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.06~12.07 | 2500 | 4D56 | SR | RN1951V |
| 05.97~09.04 | 2400 | G4CS | A1 | RN1121VRN1951V | PN0434 | DN1480DN1477 | FN0595 | |
| 01.04~01.07 | 2400 | G4JS | WAGON SHORT - 9P | RN1951V | PN0103 | DN1481 | FN11002 | |
| 11.01~12.07 | 2400 | L4CS | A1 | RN1951V | PN0434PN0103 | DN1480DN1481 | PN0447 | |
| 06.00~09.04 | 2500 | D4CB A1 | WAGON SHORT - 9P | RN1951V | PN0103 | DN1481 | PN0447FN11002 | FN11005 |
| 02.04~ | 2500 | D4CB A2 | HR | RN1951V | PN0434PN0600 | DN1489 | FN3350FN0814 | |
| 01.04~ | 2600 | D4BB | HEH75B555 | RN1951V | PN0600 | DN1457DN1489 | FN0814 | |
| 06.16~ | 2600 | D4BB | HR17 | RN1951V | PN0600 | DN1457 | FN0814 | |
| 10.19~ | 2600 | D4BB | HR20 DBL LHD | RN1951V | PN0600 | DN1489 | FN0814 | |
| 12.03~01.07 | 2600 | D4BB | PA04 LHD | RN1951V | PN0600 | DN1489 | FN0814 | |
| 01.04~ | 2600 | D4BB | TRUCK VTN | RN1951V | PN0600 | DN1457DN1489 | FN0814 |
