ROTOR DISC » RN1026V

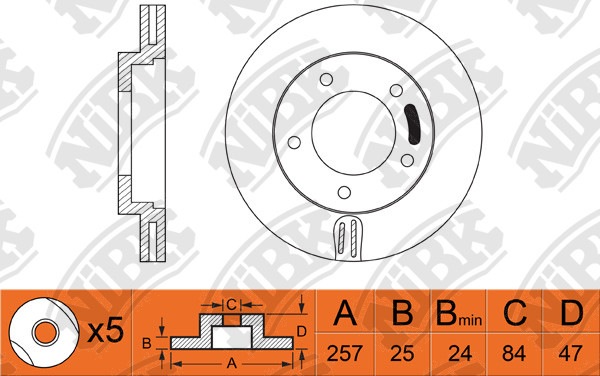

Specification
Type
Vented
Disc Thickness (Max)
25
Num. of holes
5
Height
47
Centering Diameter
84
Front/Rear
Front
Pitch Circle Ø
110
Outter Ø
257
Drum Ø:
121
Disc Thickness (Min)
24
Structure Material
G3000
Cross Reference
BENDIX
561301B
BENDIX EUR
561301B
TOYOTA
43512-26040
TOYOTA
43512-26070
TOYOTA
43512-35180
TOYOTA
43512-35260
TOYOTA
43512-YE010
years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
---|
10.96~07.01 | 2000 | 3Y | YY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
10.96~05.99 | 2800 | 3L | LY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
05.95~05.99 | 2800 | 3L | LY111 | RN1026V | PN1166 | DN1107 | FN2260 | |
05.99~07.01 | 3000 | 5L | LY102 | RN1026V | PN1166 | DN1107 | FN2260 | |
05.99~07.01 | 3000 | 5L | LY112 | RN1026V | PN1166 | DN1107 | FN2260 |
08.85~08.87 | 1600 | 1Y-J | YH80 | RN1026V | PN1166 | DN1107 | FN2260FN2276 | |
08.87~05.95 | 1800 | 2Y | YH81 | RN1026V | PN1166 | DN1107 | FN2276FN2260 | |
12.82~08.89 | 2000 | 3Y | YH51G | RN1026V | PN1166 | FN2252 | ||
12.82~08.89 | 2000 | 3Y | YH61V | RN1026V | PN1166 | FN2260 | ||
05.95~10.96 | 2000 | 3Y | YY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
08.85~01.97 | 2400 | 2L | LH80 | RN1026V | PN1166 | FN2276FN2260 | ||
09.91~05.95 | 2400 | 2L | LH90 | RN1026V | PN1166 | DN1107 | FN2276FN2260 | |
01.84~08.89 | 2400 | 2L# | LH51G | RN1026V | PN1166 | FN2252 | ||
05.95~01.96 | 2800 | 3L | LY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
01.95~01.96 | 2800 | 3L | LY111 | RN1026V | PN1166 | DN1107 | FN2260 |
08.88~09.99 | 1800 | 2Y | YN85 | RN1026V | PN1166 | DN1107 | FN2260 | |
08.91~07.98 | 1800 | 2Y-J | YN56R | RN1026V | PN1166 | DN1107 | FN2260 | |
08.97~08.05 | 2000 | 1RZ-E | RZN142L | RN1026V | PN1166 | DN1215DN1209 | FN2330FN2252 | |
08.97~03.06 | 2000 | 1RZ-E | RZN147 | RN1026V | PN1227 | DN1209DN1215 | FN2252FN2330 | |
08.97~08.05 | 2000 | 1RZ-E | RZN147L | RN1026V | PN1166 | DN1209DN1215 | FN2252FN2330 | |
08.99~08.03 | 2000 | 1RZ-E | RZN152H | RN1026V | PN1227 | DN1215 | FN2252 | |
08.94~08.97 | 2000 | 3Y-E | YN81 | RN1026V | PN1166 | DN1209 | FN2330 | |
08.94~08.97 | 2000 | 3Y-E | YN86 | RN1026V | PN1166 | DN1209 | FN2330 | |
08.88~08.97 | 2400 | 22R | RN80 | RN1026V | PN1166 | DN1107DN1215DN1209 | FN2260FN2330 | |
08.85~08.05 | 2400 | 2L | LN145R | RN1026VRN1475V | PN1830PN1166 | DN1209DN1215 | FN2330FN2252 | |
08.83~08.88 | 2400 | 2L | LN56 | RN1026V | PN1166 | FN2260 | ||
08.88~06.98 | 2400 | 2L | LN80 | RN1026V | PN1166 | FN2260 | ||
08.88~09.99 | 2400 | 2L | LN85 | RN1026V | PN1166 | DN1107 | FN2260 | |
08.88~09.99 | 2400 | 2L | LN85L | RN1026V | PN1166 | DN1107 | FN2260 | |
10.89~06.98 | 2400 | 2L | LN90 | RN1026V | PN1166 | FN2330 | ||
08.97~11.05 | 2700 | 3RZ-F | RZN144R | RN1026V | PN1166 | |||
08.97~03.06 | 2700 | 3RZ-F | RZN149L | RN1026V | PN1166 | DN1209 | FN2330 | |
08.97~03.06 | 2700 | 3RZ-F | RZN149L | RN1026V | PN1166 | DN1209 | FN2330 | |
08.97~02.05 | 2700 | 3RZ-F | RZN149R | RN1026V | PN1166 | DN1209DN1215 | FN2252FN2330 | |
08.97~11.05 | 2700 | 3RZ-FE | RZN144L | RN1026V | PN1166 | DN1215 | FN2252 | |
08.90~08.97 | 2800 | 3L | LN81 | RN1026V | PN1166 | DN1209 | FN2330 | |
08.90~06.01 | 2800 | 3L | LN86 | RN1026V | PN1166 | FN2260FN2330 | ||
08.90~06.01 | 2800 | 3L | LN86R | RN1026V | PN1166 | FN2260FN2330 | ||
08.97~03.06 | 3000 | 5L-E | LN147 | RN1026V | PN1227 | DN1215 | FN2252 |
