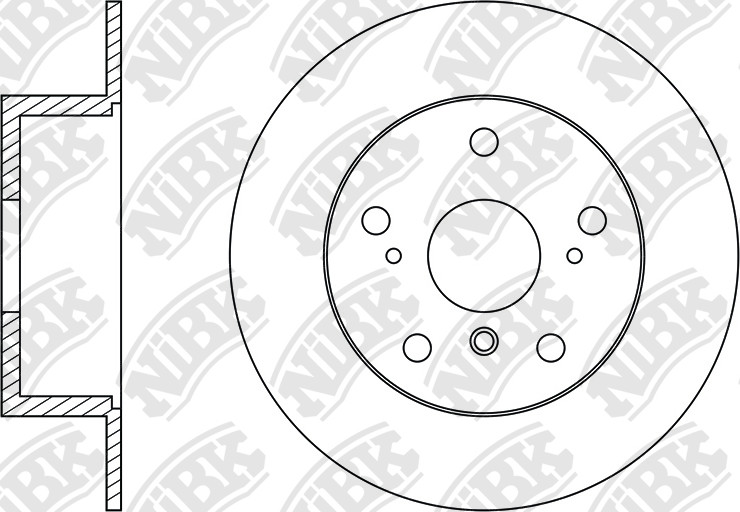

ROTOR DISC » RN1432
Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
66
Centering Diameter
62
Front/Rear
Rear
Outter Ø
281
Pitch Circle Ø
114.3
Drum Ø:
170
Disc Thickness (Min)
8.5
Structure Material
G3000
Cross Reference
TOYOTA
42431-06110
TOYOTA
42431-06150
TOYOTA
42431-06160
TOYOTA
42431-33130
TOYOTA
4243106140
TOYOTA
4243106170
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.06~11.12 | 2000 | 1AZ-FE | ACV41R | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 08.12~11.14 | 2000 | 1AZ-FE | ACV51L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 03.12~ | 2000 | 1AZ-FE | ACV51R | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 03.15~03.18 | 2000 | 6AR-FSE | ASV51L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 03.15~09.18 | 2000 | 6AR-FSE | ASV51R | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 01.06~09.11 | 2400 | 2AZ-FE | ACV40L | RN1241V | PN0828PN1521 | RN1943RN1432 | PN1522PN0829 | FN0633FN0675 |
| 01.06~07.12 | 2400 | 2AZ-FE | ACV40R | RN1241V | PN1521PN0828 | RN1943RN1432 | PN0829PN1522 | FN0675 |
| 03.06~09.11 | 2400 | 2AZ-FE | AHV40L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 03.09~03.12 | 2400 | 2AZ-FE | AHV40R | RN1241V | PN1521 | RN1432 | PN1522 | FN0675 |
| 03.10~12.11 | 2500 | 2AR-FE | AHV41 | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 04.09~09.11 | 2500 | 2AR-FE | ASV40L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 09.11~06.17 | 2500 | 2AR-FE | ASV50L | RN1241V | PN1521 | RN1432RN1666 | PN1522 | FN0675FN0633 |
| 08.11~06.17 | 2500 | 2AR-FXE | AVV50 | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 08.11~09.18 | 2500 | 2AR-FXE | AVV50L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633FN0675 |
| 08.11~11.15 | 2500 | 2AR-FXE | AVV50R | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 03.12~11.18 | 2500 | 2AR-FXE | AVV50R | RN1241V | PN1521 | RN1432 | PN1522 | FN0633FN0675 |
| 01.06~09.11 | 3500 | 2GR-FE | GSV40L | RN1241V | PN1521 | RN1432 | PN1522 | FN0633 |
| 09.11~09.17 | 3500 | 2GR-FE | GSV50L | RN1241V | PN1521PN0828 | RN1432RN1943 | PN0829PN1522 | FN0633 |
