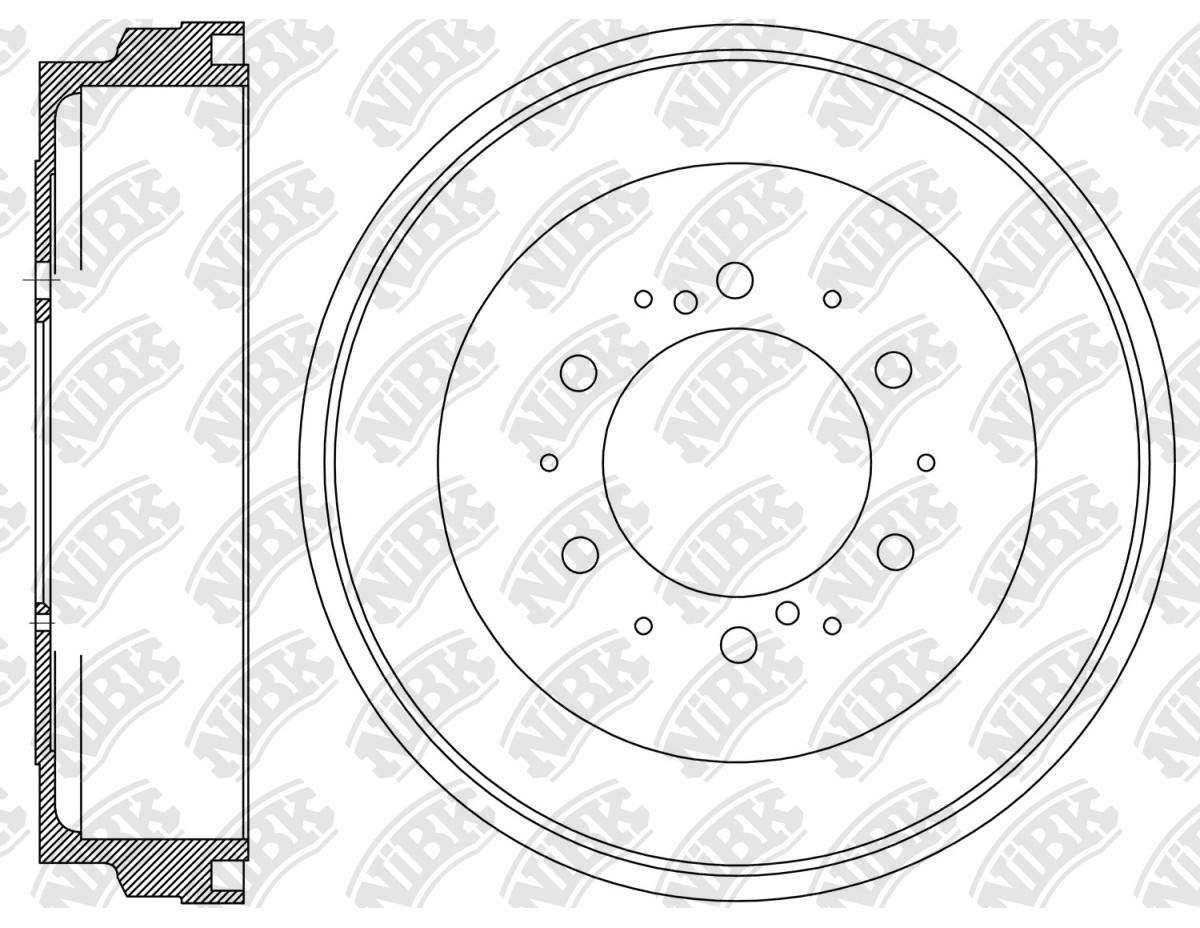

DRUM BRAKE » DN1213

Specification

Outter Ø
343
Num. of holes
6
Hole Ø
14.4
Centering Diameter
106
Height
83
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000

Cross Reference

TOYOTA
42431-34020
TOYOTA
42431-34021
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.99~08.04 3400 5VZ-FE VCK30 RN2354V PN1482PN1411 DN1253DN1213DN1214 FN2305FN0686
02.99~08.04 3400 5VZ-FE VCK40L RN2354V PN1411PN1482 DN1213DN1214DN1253 FN2305FN0686
08.04~08.06 4000 1GR-FE GSK30L RN2354V PN1482 DN1213 FN0686
02.99~12.06 4700 2UZ-FE UCK30L RN2354V PN1482PN1411 DN1253DN1213DN1214 FN0686FN2305
10.03~12.06 4700 2UZ-FE UCK31L RN2354V PN1482 DN1213 FN0686
02.99~12.06 4700 2UZ-FE UCK40 RN2354V PN1482PN1411 DN1214DN1253DN1213 FN0686FN2305
08.02~12.06 4700 2UZ-FE UCK41L RN2354V PN1482 DN1213 FN0686

Exemption from liability: the catalog data is advisory and can be used for reference only
